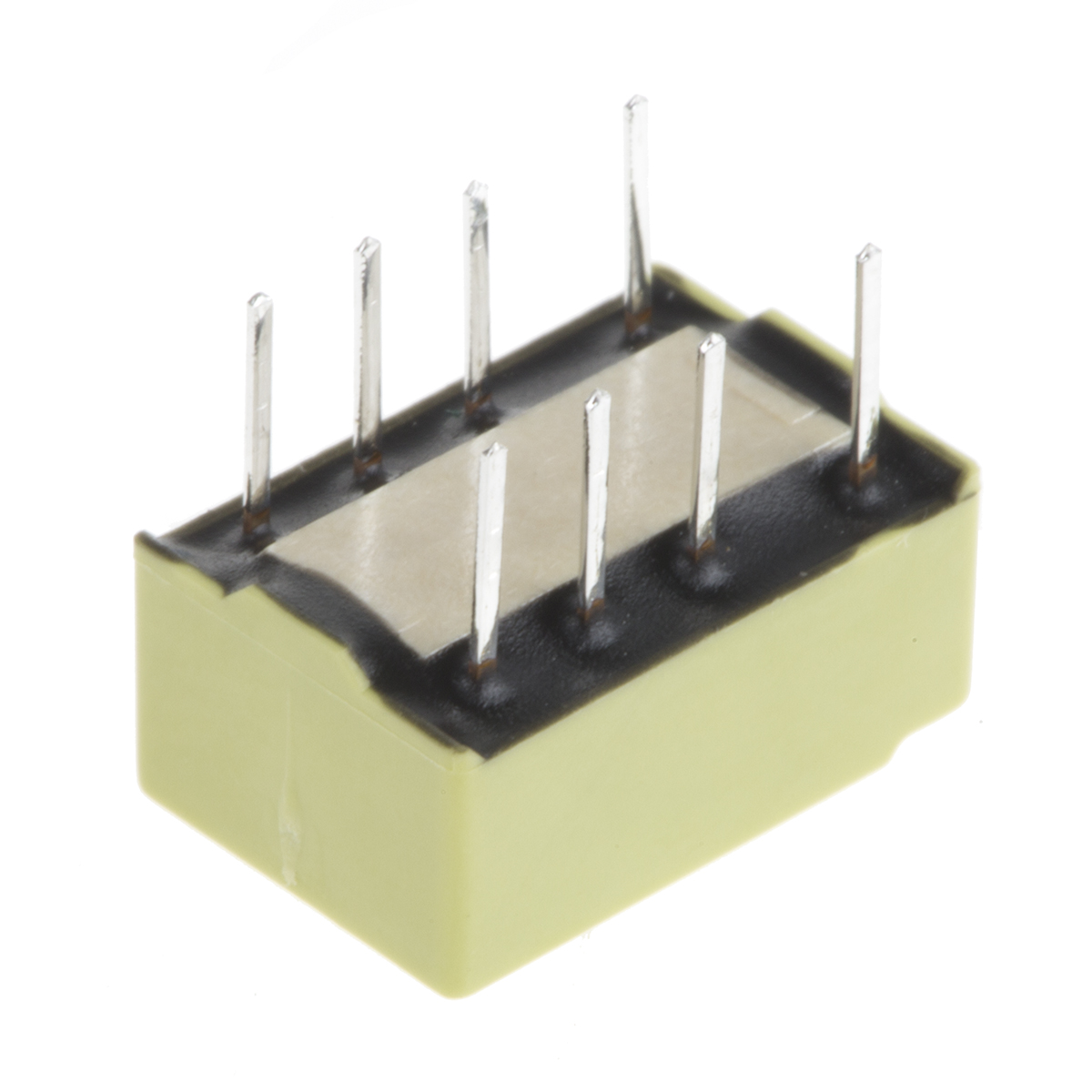

Panasonic DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A
Product Information
Dimensions:
10 x 5.2 x 7.2mm
Electrical Life:
100000 Operations Cycles
Application:
Measurement Equipment, Safety, Telecommunications
Terminal Type:
PCB Pin
Coil Resistance:
2500Ω
Life:
10^5 (Electrical AC) Operations, 10^5 (Electrical-DC) Operations, 5 x 10^7 (Mechanical) Operations
Coil Power:
230mW
Maximum Switching Voltage DC:
110V
Maximum Switching Power DC:
30 W
Isolation Coil To Contact:
2.5kV
Maximum Operating Temperature:
+85°C
Switching Current:
1A
Maximum Switching Current AC:
0.3 A
Coil Voltage:
24V dc
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
DPDT
Depth:
7.2mm
Features:
Compact Slim Body Saves Space, Increased Packaging Density, Sealed Construction allows Automatic Washing.
Mounting Type:
PCB Mount
Series:
FTR-B4
Length:
10.9mm
Height:
5.2mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
125V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
37.5VA
Number of Poles:
2
Contact Material:
Au Plated AgPd
Checking for live stock
FAQs
Yes. You can also search AGQ20024 on website for other similar products.
We accept all major payment methods for all products including ET14152792. Please check your shopping cart at the time of order.
You can order Panasonic brand products with AGQ20024 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Signal Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A. You can also check on our website or by contacting our customer support team for further order details on Panasonic DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14152792 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14152792.
Yes. We ship AGQ20024 Internationally to many countries around the world.
This is DPDT Non-Latching Relay PCB Mount 24V dc Coil 2 A manufactured by Panasonic. The manufacturer part number is AGQ20024. The given dimensions of the product include 10 x 5.2 x 7.2mm. The product offers long-lasting services of 100000 operations cycles. Applications Information involves measurement equipment, safety, telecommunications. The terminal is a pcb pin type. It holds up to 2500ω coil resistance. It is capable of doing 10^5 (electrical ac) operations, 10^5 (electrical-dc) operations, 5 x 10^7 (mechanical) operations in a lifetime . Robust coil power of 230mw. While it carries 110v of maximum DC switching voltage. It bears a maximum 30 w of DC switching power. The product has 2.5kv isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 1a switching current. It has a maximum 0.3 a switching current AC . The coil voltage of the product is 24v dc. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with dpdt configuration. The product comes in 7.2mm depth. The splendid features of the product include compact slim body saves space, increased packaging density, sealed construction allows automatic washing.. The product is available in pcb mount configuration. The product ftr-b4, is a highly preferred choice for users. Its accurate length is 10.9mm. In addition, the height is 5.2mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 125v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 37.5va. It has equipped with 2 poles. The product is made from sturdy au plated agpd materials.
