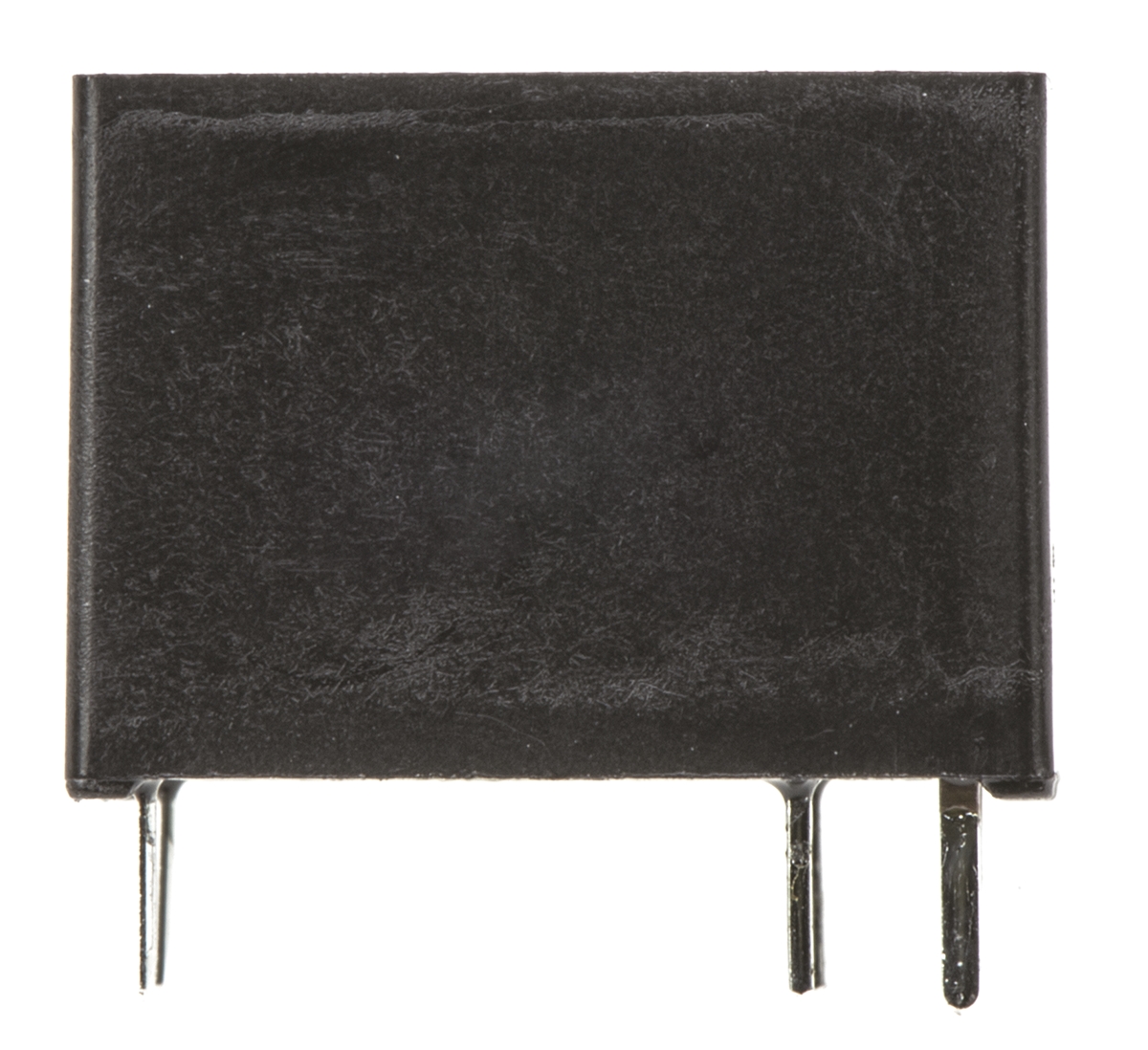

TE Connectivity SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 1 A
Product Information
Dimensions:
15.4 x 11.5 x 10mm
Coil Voltage:
24V dc
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
1280Ω
Coil Power:
450mW
Maximum Switching Voltage DC:
120V dc
Maximum Switching Power DC:
30 W
Maximum Operating Temperature:
+85°C
Switching Current:
1.25A
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
SPST
Length:
15.4mm
Features:
Multi Purpose Relay, Immersion Cleanable
Mounting Type:
PCB Mount
Series:
W11
Depth:
10mm
Height:
11.5mm
Maximum Switching Current DC:
1.25 A
Maximum Switching Voltage AC:
125V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
1
Contact Material:
Gold Plated
HTSUS:
8536.49.0080
Package:
Tube
Series:
*
RoHS Status:
RoHS Compliant
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search V23101D7A201 on website for other similar products.
We accept all major payment methods for all products including ET14028141. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with V23101D7A201 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Signal Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 1 A. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 1 A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14028141 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14028141.
Yes. We ship V23101D7A201 Internationally to many countries around the world.
This is SPDT Non-Latching Relay PCB Mount 24V dc Coil 1 A manufactured by TE Connectivity. The manufacturer part number is V23101D7A201. The given dimensions of the product include 15.4 x 11.5 x 10mm. The coil voltage of the product is 24v dc. Applications Information involves signal. The terminal is a through hole type. It holds up to 1280ω coil resistance. Robust coil power of 450mw. While it carries 120v dc of maximum DC switching voltage. It bears a maximum 30 w of DC switching power. It has a maximum operating temperature of +85°c. It is integrated with 1.25a switching current. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with spst configuration. Its accurate length is 15.4mm. The splendid features of the product include multi purpose relay, immersion cleanable. The product is available in pcb mount configuration. The product w11, is a highly preferred choice for users. The product comes in 10mm depth. In addition, the height is 11.5mm. It has a minimum 1.25 a DC switching current . It has a maximum AC switching voltage of 125v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 62.5va. It has equipped with 1 poles. The product is made from sturdy gold plated materials. It is assigned with possible HTSUS value of 8536.49.0080. It is shipped in tube package . The product is rohs compliant. The product is designated with the ear99 code number.
