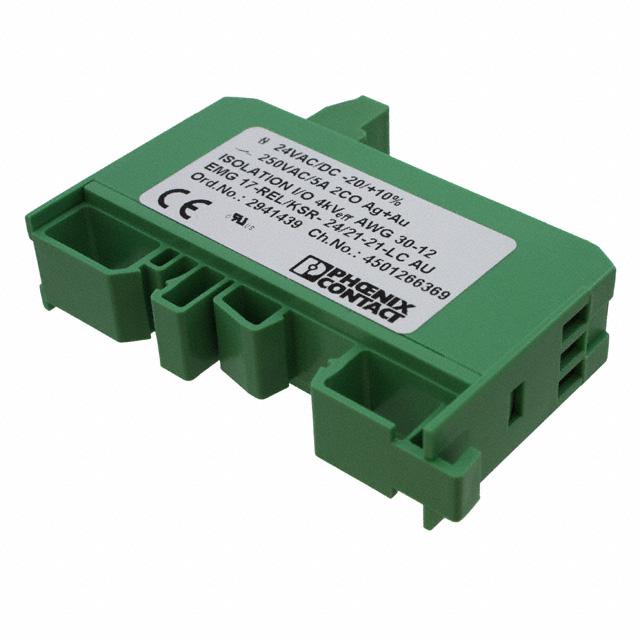

Phoenix Contact 2941439
Product Information
Life:
20000000Cycles
Maximum Operating Temperature:
+40°C
Dimensions:
62.5 x 17.5 x 75mm
Mounting Type:
DIN Rail
Switching Voltage:
30 V ac, 36V dc
Series:
EMG 17-REL/KSR- 24/21-21-LC AU
Coil Voltage:
24V ac/dc
Depth:
17.5mm
Height:
75mm
Length:
62.5mm
Maximum Input Voltage:
24V ac/dc
Input Current:
18mA
Minimum Operating Temperature:
-20°C
Turn On Time:
8ms
Turn Off Time:
10ms
Operating Temperature Range:
-20 → +40°C
Contact Configuration:
DPDT
Number of Poles:
2
Terminal Type:
Screw
Contact Material:
Gold Plated
HTSUS:
8536.41.0060
RoHS Status:
RoHS Compliant
Coil Voltage:
24VAC/DC
Termination Style:
Screw Terminal
Operating Temperature:
-20°C ~ 40°C
Coil Current:
18 mA
Coil Type:
Non Latching
Switching Voltage:
30VAC, 36VDC - Max
Seal Rating:
-
edacadModel:
2941439 Models
edacadModelUrl:
/en/models/349575
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
8 ms
Must Release Voltage:
-
standardLeadTime:
4 Weeks
Contact Rating (Current):
50 mA
Features:
Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
-
Release Time:
10 ms
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi), Gold (Au)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2941439 on website for other similar products.
We accept all major payment methods for all products including ET10528503. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2941439 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Signal Relays, Up to 2 Amps category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2941439. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2941439.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10528503 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10528503.
Yes. We ship 2941439 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2941439. It is capable of doing 20000000cycles in a lifetime . It has a maximum operating temperature of +40°c. The given dimensions of the product include 62.5 x 17.5 x 75mm. The product is available in din rail configuration. The product's switching voltage is 30 v ac, 36v dc. The product emg 17-rel/ksr- 24/21-21-lc au, is a highly preferred choice for users. The coil voltage of the product is 24v ac/dc. The product comes in 17.5mm depth. In addition, the height is 75mm. Its accurate length is 62.5mm. 24v ac/dc is the maximum voltage of the bespoke product. It has about 18ma input current . Whereas, the minimum operating temperature of the product is -20°c. It has a 8ms turn On time. The given turn off time is 10ms. The product has -20 → +40°c of operating temperature range. The contact is equipped with dpdt configuration. It has equipped with 2 poles. The terminal is a screw type. The product is made from sturdy gold plated materials. It is assigned with possible HTSUS value of 8536.41.0060. The product is rohs compliant. The coil voltage of the product is 24vac/dc. Moreover, it has screw terminal terminal style. The product has -20°c ~ 40°c operating temperature range. It has a coil current of 18 ma. The coil is a non latching type. The product's switching voltage is 30vac, 36vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 8 ms. It has a long 4 weeks standard lead time. It has a contact current rating of 50 ma. The splendid features of the product include lighted indicator, socket included. While 10 ms is its release time. The product is made from sturdy silver nickel (agni), gold (au) materials. The product is designated with the ear99 code number.
