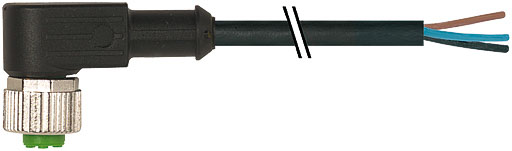

This is 7000 Series 90° Female M12 Industrial Automation Cable Assembly 5 Core 5m Cable manufactured by Murrelektronik Limited. The manufacturer part number is 7000-12361-6350500. Features 22 awg - American Wire Gauge. The product has a current rating of 4 a. The conductor has 57 o/km resistance. Additionally, it is oil resistant yes . The product consists of 5 cores. Its outer diameter is 4.8mm. Additionally, it contains 42 strands. The sheath is constructed from durable and adorable pur material. Moreover, this cable has a single core shape. It is IP rated with ip65, ip66k, ip67. The core strands are 42 x 0.1 mm. The product has -25 → +80 (mobile) °c, -25 → +85 °c, -40 → +80 (fixed) °c of operating temperature range. It has a maximum operating temperature of +80 (fixed, +85 °c, mobile) °c. Moreover, the product has a nominal 30, 125 v voltage rating. The connector 1 has a right angle orientation. It bears 24 (fixed) mm, 48 (moving) mm of minimum bend radius. The product has a flame retardant fire behaviour. This connector 1 is a female. Its accurate length is 5m. The product a-coded, is a highly preferred choice for users. The strand size includes 0.1 mm. There are 5 contacts on connector 1. The sheath has an adorable black colour. The product has 0.34 mm² cross section area. Whereas, the minimum operating temperature of the product is -25 (mobile) °c, -40 (fixed) °c. While the Connector 2 is unterminated. Connector 1 is m12. On the other hand, the gender of connector 1's housing is male. It has a robust pp insulation material.
For more information please check the datasheets.
