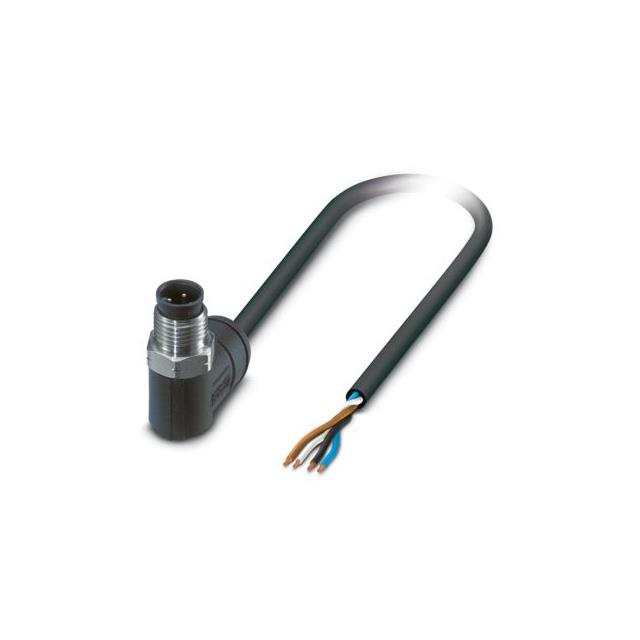

Phoenix Contact 1407967
Product Information
American Wire Gauge:
20 AWG
Current Rating:
4 A
Oil Resistant:
Yes
Number of Cores:
4
Outer Diameter:
5.2mm
Sheath Material:
PE
Cable Shape:
Twisted Pair
Voltage Rating:
250 V
IP Rating:
IP65, IP67, IP68, IP69K
Connector 1 Orientation:
Right Angle
Minimum Bend Radius:
26 mm (Fixed), 52 mm (Movable)
Fire Behaviour:
Halogen Free
Connector 1 Gender:
Male
Length:
10m
Conductor Material:
Bare Cu litz wires
Series:
SAC-4P
Connector 1 Housing Gender:
Male
Connector 1 Number of Contacts:
4
Coding:
A
Sheath Colour:
Black/Grey
Cross Sectional Area:
0.5 mm²
Connector 1:
M12
Insulation Material:
PE
1st Connector Orientation:
A
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
RoHS Compliant
Usage:
Industrial Environments
Shielding:
Unshielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
Cable Material:
Polyethylene, Cross Linked (PEX)
2nd Connector Type:
Wire Leads
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
2nd Connector Number of Positions Loaded:
-
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
32.8' (10.00m)
Ingress Protection:
IP65/IP67/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
standardLeadTime:
7 Weeks
1st Connector Type:
Receptacle, Right Angle
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
4
1st Connector Gender:
Male Pins
Color:
Black
Series:
-
2nd Connector Orientation:
-
Cable Type:
Round
Packaging:
Bulk
2nd Connector Gender:
-
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1407967 on website for other similar products.
We accept all major payment methods for all products including ET14156063. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1407967 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Sensor & Actuator Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1407967. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1407967.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14156063 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14156063.
Yes. We ship 1407967 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1407967. Features 20 awg - American Wire Gauge. The product has a current rating of 4 a. Additionally, it is oil resistant yes . The product consists of 4 cores. Its outer diameter is 5.2mm. The sheath is constructed from durable and adorable pe material. Moreover, this cable has a twisted pair shape. Moreover, the product has a nominal 250 v voltage rating. It is IP rated with ip65, ip67, ip68, ip69k. The connector 1 has a right angle orientation. It bears 26 mm (fixed), 52 mm (movable) of minimum bend radius. The product has a halogen free fire behaviour. This connector 1 is a male. Its accurate length is 10m. The conductor is made from bare cu litz wires material. The product sac-4p, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is male. There are 4 contacts on connector 1. The product is coded with a. The sheath has an adorable black/grey colour. The product has 0.5 mm² cross section area. Connector 1 is m12. It has a robust pe insulation material. This connector has a a orientation. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs compliant. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with unshielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m12. The cable is constructed from highly durable polyethylene, cross linked (pex) materials. The second connector is the wire leads. The product is designed in a standard assembly configuration. The phoenix contact's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 32.8' (10.00m). It is IP rated with ip65/ip67/ip68/ip69k - dust tight, water resistant, waterproof. It has a long 7 weeks standard lead time. receptacle, right angle is the first connector. The first connector contains 4 positions. The first connectors are male pins. It has a classic black colour. It is a typical round cable. In addition, bulk is the available packaging type of the product. The first connector is configured with a free hanging (in-line) mounting type. The product is designated with the ear99 code number.
