BALLUFF Rectangular Micropulse Transducer Magnet, 28 x 40 x 29.9 mm

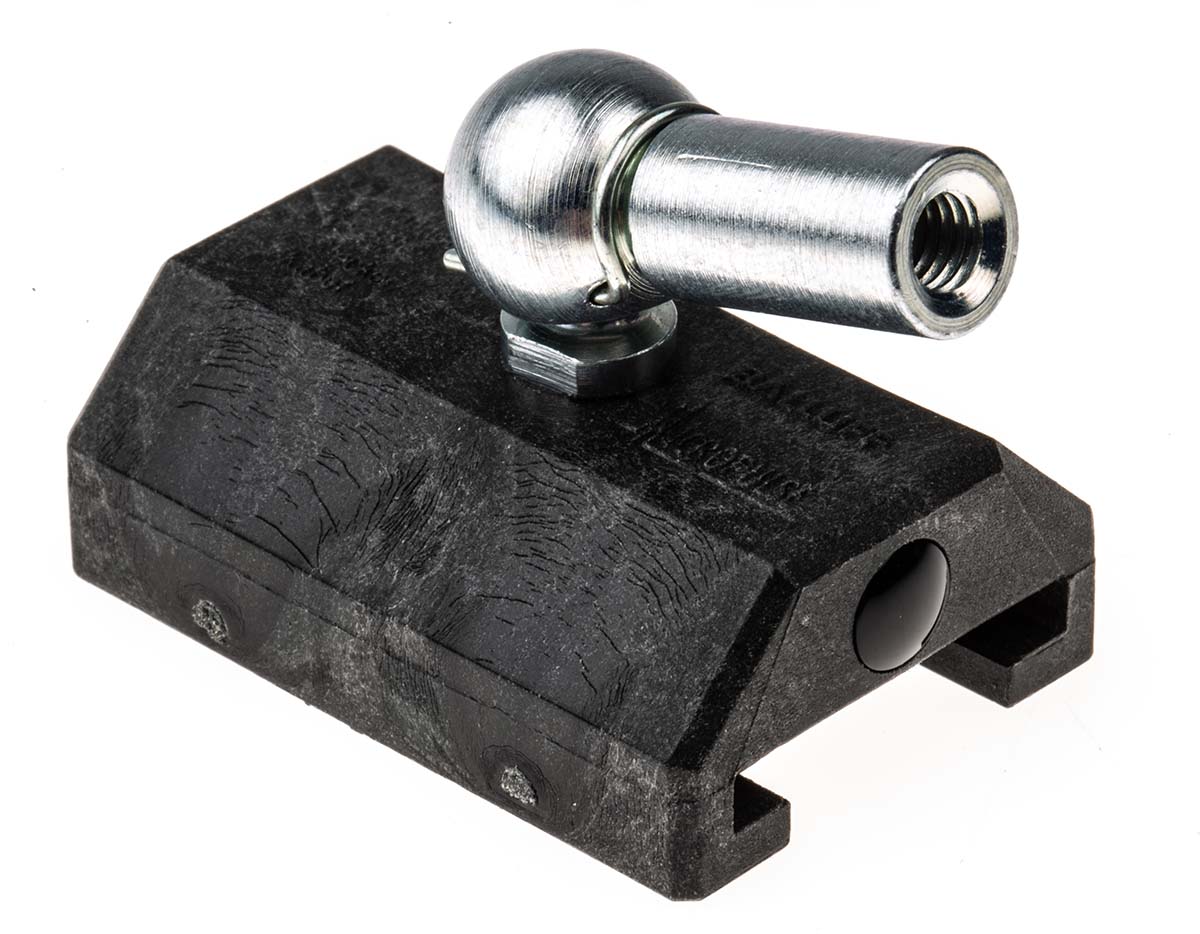

The Balluff BTL5-F-2814-1S is a precision-engineered captive magnet designed specifically for use with Micropulse BTL profile-style linear transducers. This essential accessory facilitates non-contact position sensing by moving along the transducer housing to provide accurate feedback without mechanical wear. Constructed with high-quality Iglidur J material and featuring a ball-joint swivel, it offers exceptional flexibility and durability for complex linear motion tracking in automated industrial systems.

What Makes Our Product Stand Out?

The captive design of the Balluff BTL5-F-2814-1S captive magnet eliminates the risk of magnet loss, while the integrated ball-joint swivel allows for significant parallel and angular offset during operation. This ensures consistent and accurate data transmission even in mechanical setups where perfect alignment is difficult to maintain.

• Wear-Free Operation: Utilises non-contact technology to ensure a virtually unlimited service life without mechanical degradation.
• Versatile Mounting: Equipped with a ball-joint swivel that compensates for mechanical tolerances and misalignments.

Technical Specifications

• Magnet Type: Captive rectangular magnet for profile-style transducers.
• Dimensions: Approximately 28 x 40 x 30.4 mm.
• Material: Built with Iglidur J for low friction and high wear resistance.
• Temperature Range: Operates reliably in ambient temperatures from -40°C to +85°C.
• Compatibility: Designed specifically for Balluff Micropulse BTL5 series linear position sensors.

Suitable Environments

• Automation Lines: Perfect for high-speed assembly and packaging machinery requiring precise positioning.
• Heavy Machinery: Suitable for hydraulic cylinders and industrial presses where robust feedback is required.
• Extreme Temperatures: Engineered to function in both sub-zero and high-heat industrial processing environments.

For more information please check the datasheets.
