Voltage Rating - AC:
120 V
Electrical Life:
1,000,000 Cycles
Termination Style:
Screw Terminal
Voltage Rating - DC:
125 V
Operating Temperature:
-40°C ~ 70°C
Approval Agency:
BV, CSA, DNV, GL, LROS, UL
Panel Cutout Dimensions:
Circular - 22.00mm Dia
Mechanical Life:
500,000 Cycles
Type:
Standard
Number of Positions:
3
title:

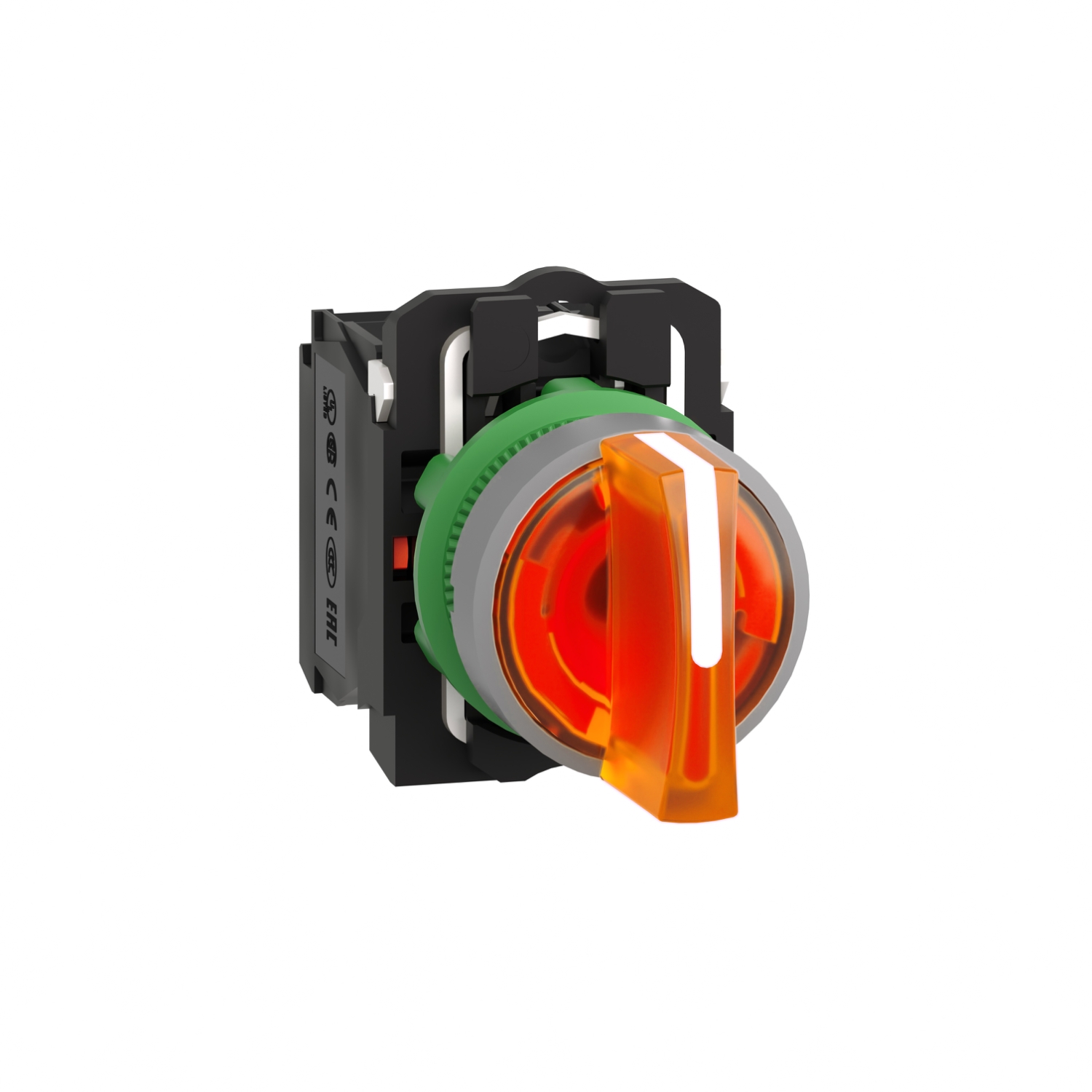

XB5AK135B5C0
Illumination Type, Color:
LED, Orange
Depth Behind Flange:
43.00mm
Manufacturer:
Schneider Electric
Switch Function:
On-Off, Off-On
Circuit:
DPST-NO/NC
standardLeadTime:
5 Weeks
Current Rating (Amps):
6A (AC), 550mA (DC)
Ingress Protection:
IP66/IP67 - Dust Tight, Water Resistant, Waterproof
Features:
-
Mounting Type:
Panel Mount
Series:
Harmony XB5
Packaging:
Box
Illumination:
Illuminated
Illumination Voltage (Nominal):
24 VAC/DC
Hazardous Area Certification:
No
IP Rating:
IP67, IP66
Series:
Harmony XB5
Angle of Throw:
45 °
Height:
42mm
Housing Material:
Plastic, Silver Alloy
Width:
30 mm
Depth:
70mm
Number of Positions:
3
Standards/Approvals:
DNV, UL, JIS C8201-1, IEC 60947-5-4, LROS (Lloyds register of shipping), EU RoHS Directive, GL, REACh Regulation, IEC 60947-1, BV, CSA C22.2 No 14, IEC 60947-5-1, UL 508, CSA, JIS C8201-5-1
Cutout Diameter:
22mm
Product Type:
Selector Switch
Terminal Type:
Screw Clamp
Contact Configuration:
SPDT
Switch Operation:
Stay Put
