STMicroelectronics TM8050H-8D3-TR
Product Information
Repetitive Peak Forward Blocking Voltage:
800V
Repetitive Peak Reverse Voltage:
800V
Peak On-State Voltage:
1.55V
Dimensions:
16.05 x 14 x 5.1mm
Mounting Type:
Surface Mount
Surge Current Rating:
731A
Rated Average On-State Current:
50A
Height:
5.1mm
Width:
14mm
Length:
16.05mm
Package Type:
D3PAK
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
100mA
Maximum Gate Trigger Current:
50mA

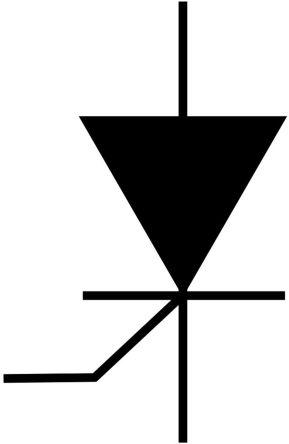

Thyristor Type:
SCR
Maximum Operating Temperature:
+150 °C
Pin Count:
2+Tab
Maximum Gate Trigger Voltage:
1.5V
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Off State:
800 V
Voltage - Gate Trigger (Vgt) (Max):
1.5 V
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Current - Hold (Ih) (Max):
100 mA
edacadModel:
TM8050H-8D3-TR Models
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
80 A
edacadModelUrl:
/en/models/5977693
Package:
Tape & Reel (TR)
Current - Off State (Max):
20 µA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
50 mA
standardLeadTime:
25 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
670A, 731A
Voltage - On State (Vtm) (Max):
1.55 V
Mounting Type:
Surface Mount
Current - On State (It (AV)) (Max):
50 A
Series:
-
Supplier Device Package:
D3Pak
SCR Type:
Standard Recovery
Base Product Number:
TM8050
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TM8050H-8D3-TR on website for other similar products.
We accept all major payment methods for all products including ET11019278. Please check your shopping cart at the time of order.
You can order STMicroelectronics brand products with TM8050H-8D3-TR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in SCRs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of STMicroelectronics TM8050H-8D3-TR. You can also check on our website or by contacting our customer support team for further order details on STMicroelectronics TM8050H-8D3-TR.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11019278 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "STMicroelectronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11019278.
Yes. We ship TM8050H-8D3-TR Internationally to many countries around the world.
This is manufactured by STMicroelectronics. The manufacturer part number is TM8050H-8D3-TR. Moreover, it has a repetitive peak forward blocking voltage about 800v . It has about 800v repetitive reverse voltage . It has a peak on-state voltage about 1.55v . The given dimensions of the product include 16.05 x 14 x 5.1mm. The product is available in surface mount configuration. It has about 731a surge current rating . Moreover, it has about 50a rated average on-state current . In addition, the height is 5.1mm. Furthermore, the product is 14mm wide. Its accurate length is 16.05mm. The package is a sort of d3pak. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 100ma holding current . In addition, the product has a maximum 50ma gate trigger current . In addition, the product has a/an scr type thyristor . It has a maximum operating temperature of +150 °c. It contains 2+tab pins. Moreover, it has a maximum 1.5v gate trigger voltage . It is assigned with possible HTSUS value of 8541.30.0080. The product is rohs3 compliant. It has an off state voltage of 800 v. While the maximum voltage - gate trigger includes 1.5 v. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-268-3, d³pak (2 leads + tab), to-268aa. The maximum hold current is 100 ma. In addition, it is reach unaffected. The maximum 80 a of on state current. It is shipped in tape & reel (tr) package . The maximum off state current is 20 µa . Its typical moisture sensitivity level is 1 (unlimited). The maximum gate triggering current is 50 ma. It has a long 25 weeks standard lead time. Non rep. current with 50, 60Hz surge included 670a, 731a. The maximum on state voltage includes 1.55 v . Maximum on state current of 50 a. d3pak is the supplier device package value. It is a standard recovery SCR. Moreover, it corresponds to tm8050, a base product number of the product. The product is designated with the ear99 code number.
