Repetitive Peak Forward Blocking Voltage:
1800V
Repetitive Peak Reverse Voltage:
1800V
Peak On-State Voltage:
1.3V
Dimensions:
92 x 50 x 49mm
Mounting Type:
Panel Mount
Surge Current Rating:
17kA
Rated Average On-State Current:
560A
Repetitive Peak Off-State Current:
40mA
Package Type:
Y1 CU
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
300mA
Maximum Gate Trigger Current:
300mA
Thyristor Type:
SCR Module
Maximum Operating Temperature:
+140 °C
Pin Count:
4
Maximum Gate Trigger Voltage:
2V
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Off State:
1.8 kV
Voltage - Gate Trigger (Vgt) (Max):
2 V
Operating Temperature:
-40°C ~ 140°C (TJ)
Package / Case:
Y1-CU
Current - Hold (Ih) (Max):
300 mA
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
880 A
Structure:
Single
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
300 mA
standardLeadTime:
20 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
17000A, 16000A
Mounting Type:
Chassis Mount
Current - On State (It (AV)) (Max):
560 A
Series:
-
Number of SCRs, Diodes:
1 SCR
Base Product Number:
MCO500
ECCN:
EAR99

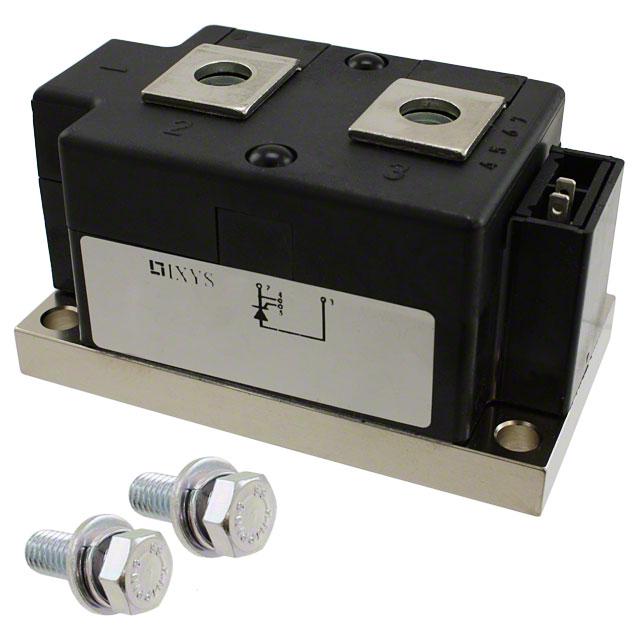

This is manufactured by IXYS. The manufacturer part number is MCO500-18IO1. Moreover, it has a repetitive peak forward blocking voltage about 1800v . It has about 1800v repetitive reverse voltage . It has a peak on-state voltage about 1.3v . The given dimensions of the product include 92 x 50 x 49mm. The product is available in panel mount configuration. It has about 17ka surge current rating . Moreover, it has about 560a rated average on-state current . Its repetitive peak off-state current is approximately 40ma . The package is a sort of y1 cu. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 300ma holding current . In addition, the product has a maximum 300ma gate trigger current . In addition, the product has a/an scr module type thyristor . It has a maximum operating temperature of +140 °c. It contains 4 pins. Moreover, it has a maximum 2v gate trigger voltage . It is assigned with possible HTSUS value of 8541.30.0080. The product is rohs3 compliant. It has an off state voltage of 1.8 kv. While the maximum voltage - gate trigger includes 2 v. The product has -40°c ~ 140°c (tj) operating temperature range. Moreover, the product comes in y1-cu. The maximum hold current is 300 ma. In addition, it is reach unaffected. The maximum 880 a of on state current. It has a single structure. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). The maximum gate triggering current is 300 ma. It has a long 20 weeks standard lead time. Non rep. current with 50, 60Hz surge included 17000a, 16000a. The product is available in chassis mount configuration. Maximum on state current of 560 a. It consists of 1 scr . Moreover, it corresponds to mco500, a base product number of the product. The product is designated with the ear99 code number.
