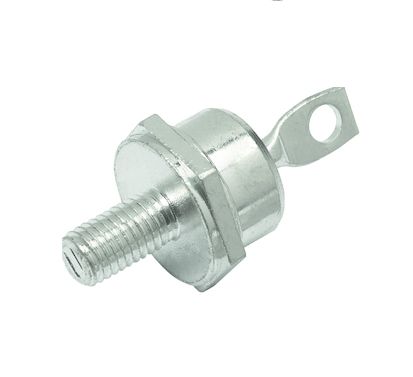

Rectifier diode, 85HF120M 85A 1200V

VS-85HF120M Rectifier diode, 85HF120M 85A 1200V
VS-85HF120M Rectifier diode, 85HF120M 85A 1200V
Vishay

Product Information

Automotive Standard:
No
Diameter:
17.35 mm
Peak Reverse Current Ir:
9mA
Maximum Operating Temperature:
180°C
Rectifier Type:
Recovery
Series:
VS-85HF
Peak Reverse Repetitive Voltage Vrrm:
1200V
Maximum Continuous Forward Current If:
85A
Height:
22.9mm
Width:
17.35 mm
Length:
20.02mm
Package Type:
DO-5
Minimum Operating Temperature:
-65°C
Maximum Forward Voltage Vf:
1.2V
Standards/Approvals:
RoHS
Peak Non-Repetitive Forward Surge Current Ifsm:
1.8kA
Product Type:
Diode
Diode Configuration:
Stud Cathode
Pin Count:
2
Mount Type:
Screw
RoHs Compliant
Checking for live stock

This is Rectifier diode 85HF120M 85A 1200V manufactured by Vishay. The manufacturer part number is VS-85HF120M. The product complies with automotive standard - no. Its diameter is 17.35 mm. It has a maximum operating temperature of 180°c. This recovery product is highly suited for various professionals in various settings. The product vs-85hf, is a highly preferred choice for users. In addition, the height is 22.9mm. Furthermore, the product is 17.35 mm wide. Its accurate length is 20.02mm. The package is a sort of do-5. Whereas, the minimum operating temperature of the product is -65°c. diode is a versatile product designed to provide user-defined applications. The diode features a stud cathode configuration. It contains 2 pins. It has a screw type mount .
