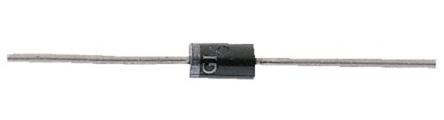

HY Electronic Corp SR5100 Schottky Diode, 100V 5A, 2-Pin DO-27

Enrgtech Part No: ET16816468
|
Manufacturer Part No:
SR5100
|
Manufacturer: HY Electronic Corp

SR5100 HY Electronic Corp Schottky Diode, 100V 5A, 2-Pin DO-27

Product Information

Automotive Standard:

Diameter:

5.6 mm

Peak Reverse Current Ir:

50mA

Maximum Operating Temperature:

150°C

Peak Reverse Repetitive Voltage Vrrm:

100V

Series:

SR5100

Maximum Continuous Forward Current If:

Peak Non-Repetitive Forward Surge Current Ifsm:

150A

Height:

9.5mm

Rectifier Type:

Schottky

Length:

59.5mm

Package Type:

DO-27

Checking for live stock

The HY Electronic Corp SR5100 is a high-performance Schottky barrier rectifier known for its fast switching speeds and efficiency. It supports a 5A average forward current and a 100V peak reverse voltage. This Schottky diode is housed in a durable DO-201AD package suitable for through-hole mounting. It minimises power loss through a low forward voltage drop. It is a vital component for high-frequency inverters and polarity protection circuits in modern electronics.

Main Reasons to Use This Product

The HY Electronic Corp SR5100 Schottky diode ensures high efficiency by reducing energy loss as heat. Its fast switching capability makes it ideal for high-speed power conversion.

Low forward voltage drop.
High surge current capability.
Extremely fast switching speed.
Reliable guard ring protection.

Special Features & Technical Specifications

Forward Current: 5.0A
Peak Reverse Voltage: 100V
Forward Voltage Max: 0.85V
Package Type: DO-201AD (Axial)
Surge Current: 150A (Peak)
Operating Temperature: -65°C to +150°C
Construction: Epitaxial with Guard Ring
Mounting Style: Through Hole.

ESD Control Selection Guide V1(Technical Reference)

SR520 thru SR5100 Schottky Barrier Rectifier(Technical Reference)
