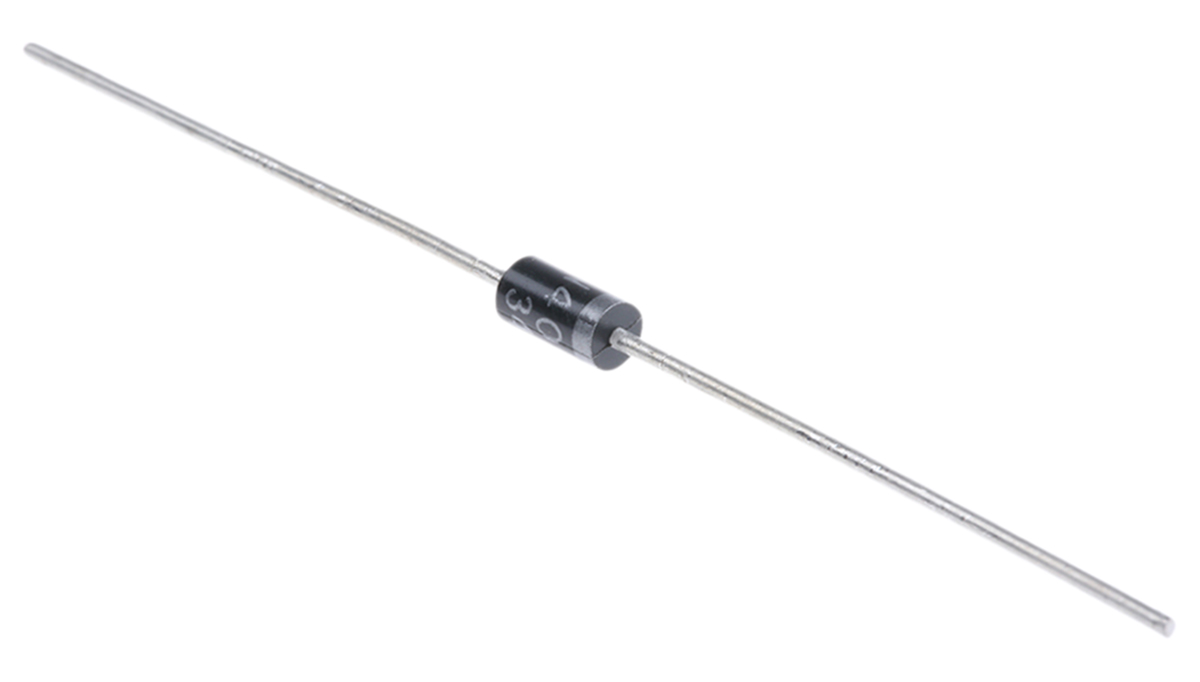

Vishay 1N4005-E3/54 Diode, 600V 1A, 2-Pin DO-204AL

1N4005-E3-54 Vishay 1N4005-E3/54 Diode, 600V 1A, 2-Pin DO-204AL
Vishay

Product Information

Diameter:
2.7mm
Mounting Type:
Through Hole
Diode Technology:
Silicon Junction
Series:
1N4005
Peak Non-Repetitive Forward Surge Current:
45A
Maximum Forward Voltage Drop:
1.1V
Maximum Continuous Forward Current:
1A
Rectifier Type:
General Purpose
Package Type:
DO-204AL
Number of Elements per Chip:
1
Diode Type:
Rectifier
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
600V
RoHs Compliant
Checking for live stock

This is Diode 600V 1A 2-Pin DO-204AL manufactured by Vishay. The manufacturer part number is 1N4005-E3/54. Its diameter is 2.7mm. The product is available in through hole configuration. The product utilizes silicon junction diode technology. The product 1n4005, is a highly preferred choice for users. Moreover, a bespoke product has 45a peak non-repetitive forward surge current. It features 1.1v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 1a. This general purpose product is highly suited for various professionals in various settings. The package is a sort of do-204al. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 600v.

pdf icon
Application Note- SUPERECTIFIER® Design Brings New Level of Reliability to Surface Mount Components(Technical Reference)
pdf icon
Application Note- Trim and Form Process Recommendations(Technical Reference)
pdf icon
Application Note- Design Guidelines for Schottky Rectifiers(Technical Reference)
pdf icon
Application Note- Rectifiers for Power Factor Correction (PFC)(Technical Reference)
pdf icon
Application Note- Physical Explanation(Technical Reference)
pdf icon
Application Note- Diodes Group Body Marking(Technical Reference)
pdf icon
Datasheet(Technical Reference)
pdf icon
Application Note- Power Factor Correction with Ultrafast Diodes(Technical Reference)
pdf icon
Application Note- High Speed Data Line(Technical Reference)
pdf icon
Application Note- Packaging(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
