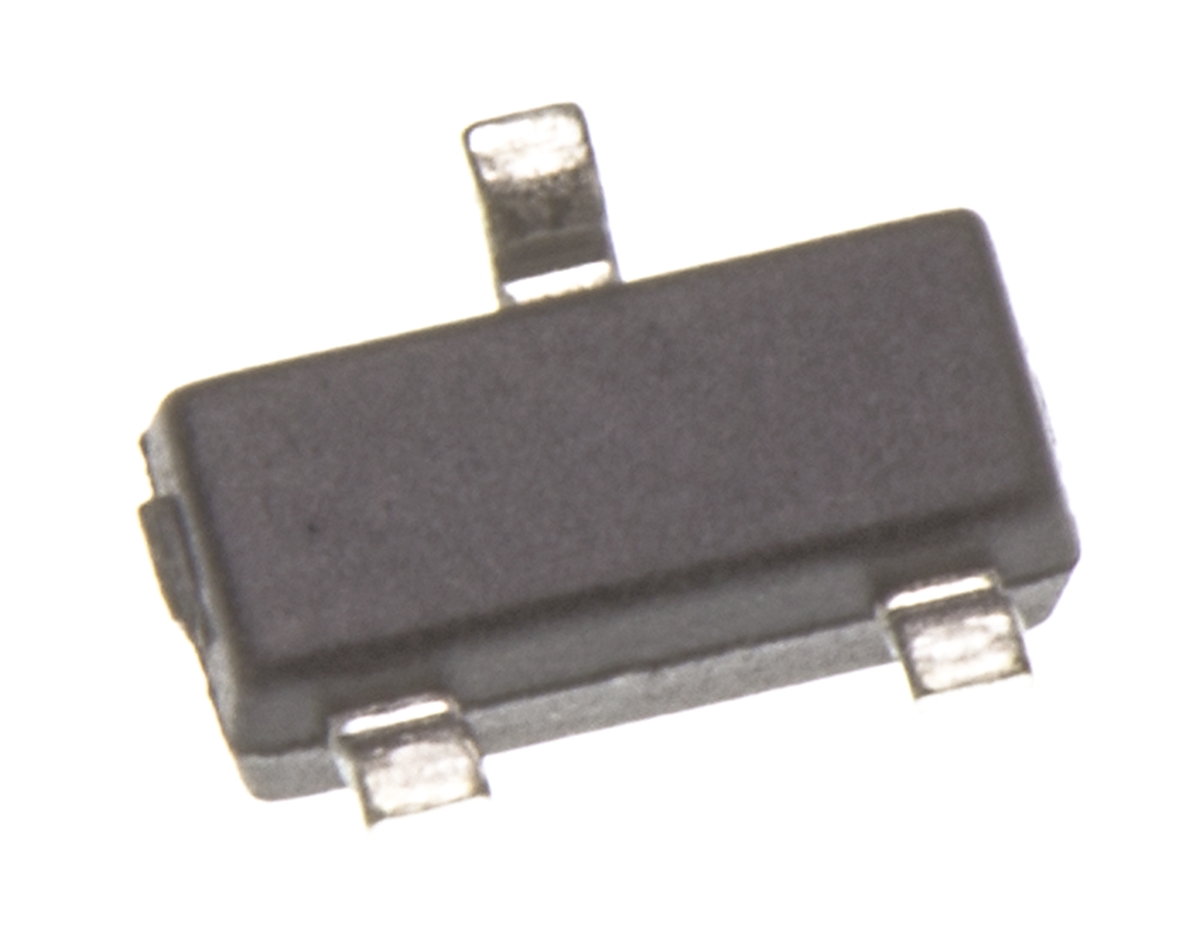

Diodes Inc ZHCS1000TA SMT Schottky Diode, 40V 1.75A, 3-Pin SOT-23
Product Information
Mounting Type:
Surface Mount
Diode Technology:
Schottky
Peak Reverse Recovery Time:
12ns
Peak Non-Repetitive Forward Surge Current:
12A
Maximum Continuous Forward Current:
1.75A
Rectifier Type:
Schottky Rectifier
Package Type:
SOT-23
Number of Elements per Chip:
1
Diode Type:
Schottky
Diode Configuration:
Single
Pin Count:
3
Peak Reverse Repetitive Voltage:
40V
Checking for live stock
FAQs
Yes. You can also search ZHCS1000TA on website for other similar products.
We accept all major payment methods for all products including ET13855610. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with ZHCS1000TA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Schottky Diodes & Rectifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc ZHCS1000TA SMT Schottky Diode, 40V 1.75A, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc ZHCS1000TA SMT Schottky Diode, 40V 1.75A, 3-Pin SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13855610 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13855610.
Yes. We ship ZHCS1000TA Internationally to many countries around the world.
Schottky Barrier Diodes, 300mA to 1A, Diodes Inc Super Barrier Rectifiers (SBR) diodes are the next generation of rectifiers. The two terminal device has a lower forward voltage (VF) than comparable Schottky diodes. While possessing the thermal stability and high reliability characteristics of PN epitaxial diodes. Diodes and Rectifiers, Diodes Inc
Product Details
Buy Schottky diode ET13855610 | ZHCS1000TA online. EnrgTech is offering free shipping for UK customers on shopping over 200 Pounds.
Schottky Diodes
SMT schottky diode rectifiers are semiconductor diodes that can be used in different tasks such as rectifications, wave shaping, and switching applications. The forward voltage drop of a Schottky diode is less than 0.7 volts of the conventional PN junction diode. They are used in many different applications performed through TTL and CMOS logic gates due to their reduced power and quick changing gates. These gates can be determined by the letter LS found somewhere in their logic circuit code.
The Schottky barrier diodes rectifier ranging from 300 mA to 1A, now with a super barrier diode, can be regarded as the next generation diodes. This device consists of two terminals having a forward voltage lower than the comparable diodes. These diodes possess the qualities of thermal stability and high reliability that are similar to those in PN epitaxial diodes.
Applications
These SMT schottky diode rectifier are involved in performing a variety of applications like voltage clamping, reverse current, and discharge protection, switched-mode power supply, used in sample-and-hold circuits, and are also efficient for charge control to accurately load and unload single electrons in semiconductor nanostructures, single-condition switching that is performed through the TTL and CMOS logic gates.
Voltage
A much lower voltage of 0.3 to 0.4 volts than the 0.3 to 0.4 volts of a silicone-based PN junction diode is provided for the same rate of forwarding current. The reverse breakdown voltage of SMT schottky diode rectifier is lower at around 50 volts and has a greater leakage current. Moreover, Schottky diodes can turn ON with a voltage drop of 0.2 Volts.
