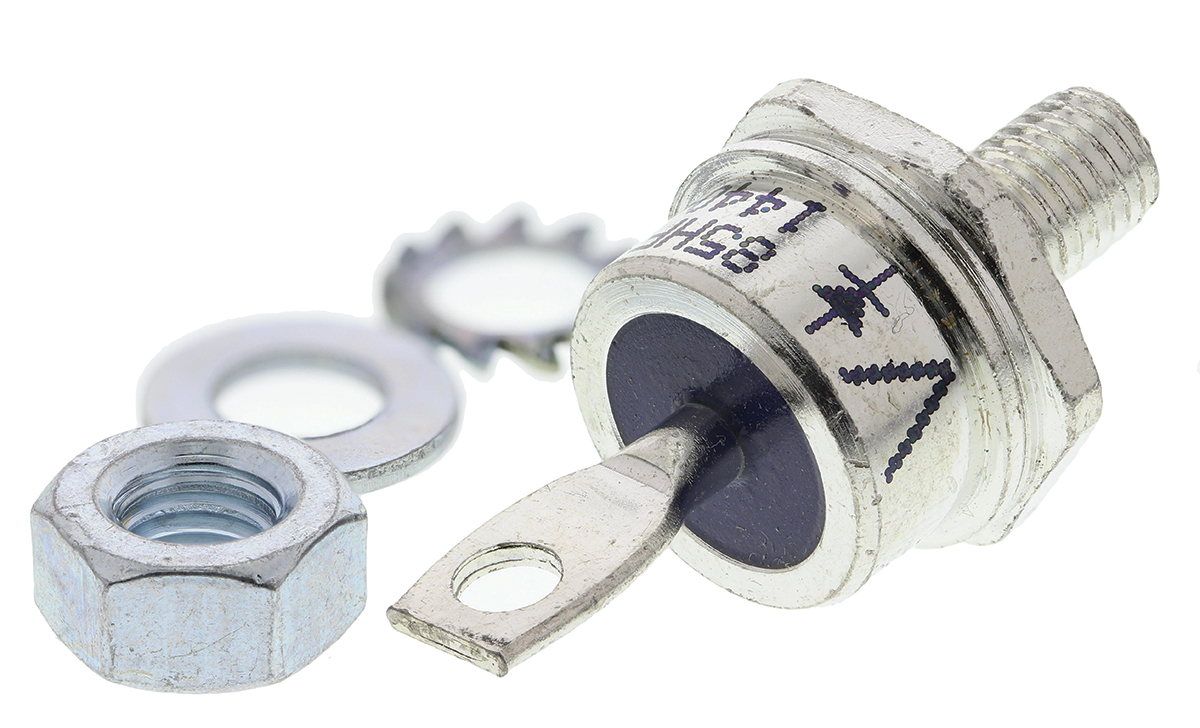

Vishay VS-85HF160 Thread Mount Switching Diode, Stud Cathode, 1600V 85A, 2-Pin DO-5

VS-85HF160 Vishay Thread Mount Switching Diode, Stud Cathode, 1600V 85A, 2-Pin DO-5
VS-85HF160 Vishay Thread Mount Switching Diode, Stud Cathode, 1600V 85A, 2-Pin DO-5
Vishay

Product Information

Rectifier Type:
Switching
Peak Reverse Repetitive Voltage Vrrm:
1600V
Diode Configuration:
Stud Cathode
Automotive Standard:
No
Package Type:
DO-203AB
Maximum Forward Voltage Vf:
1.4V
Product Type:
Diode
Maximum Operating Temperature:
150°C
Maximum Continuous Forward Current If:
85A
Peak Reverse Recovery Time trr:
87ns
Peak Non-Repetitive Forward Surge Current Ifsm:
1.8kA
Length:
20.02mm
Standards/Approvals:
RoHS
Pin Count:
2
Mount Type:
Screw
Diameter:
17.35 mm
Peak Reverse Current Ir:
4.5mA
Width:
17.35 mm
Series:
VS-85HF
Height:
22.9mm
Minimum Operating Temperature:
-65°C
RoHs Compliant
Checking for live stock

This is Thread Mount Switching Diode Stud Cathode 1600V 85A 2-Pin DO-5 manufactured by Vishay. The manufacturer part number is VS-85HF160. This switching product is highly suited for various professionals in various settings. The diode features a stud cathode configuration. The product complies with automotive standard - no. The package is a sort of do-203ab. diode is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. Its accurate length is 20.02mm. It contains 2 pins. It has a screw type mount . Its diameter is 17.35 mm. Furthermore, the product is 17.35 mm wide. The product vs-85hf, is a highly preferred choice for users. In addition, the height is 22.9mm. Whereas, the minimum operating temperature of the product is -65°c.
