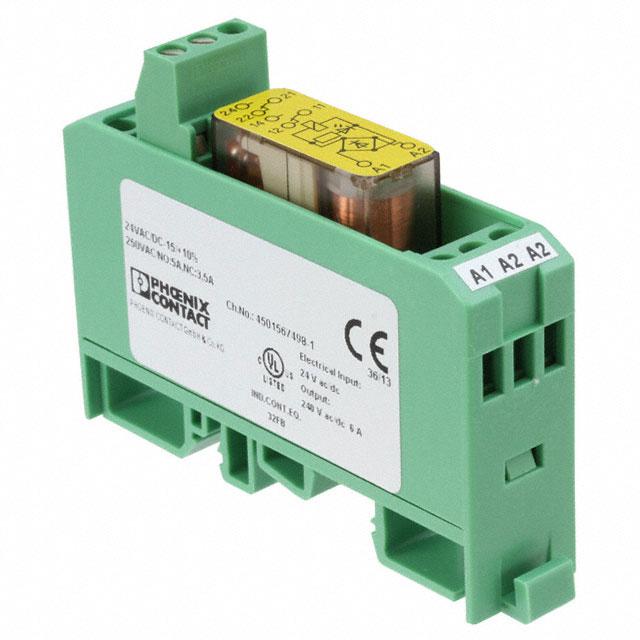

Phoenix Contact 2981363
Product Information
Coil Voltage:
24V dc
Life:
10000000 (Mechanical)Cycles
Coil Power:
0.72W
Maximum Switching Voltage DC:
230V
Isolation Coil To Contact:
4kV
Maximum Operating Temperature:
+50°C
Terminal Type:
Screw
Maximum Switching Current AC:
6 A
Switching Current:
6A
Contact Configuration:
DPDT
Depth:
17.5mm
Mounting Type:
DIN Rail
Series:
PSR-SCF- 24UC/URM/2X21
Length:
75mm
Height:
60.5mm
Maximum Switching Current DC:
6 A
Maximum Switching Voltage AC:
230V
Minimum Operating Temperature:
-20°C
Maximum Switching Power AC:
1.5 kVA
Number of Poles:
2
Contact Material:
Silver Alloy
HTSUS:
8536.41.0060
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VAC/DC
Termination Style:
Screw Terminal
Operating Temperature:
-20°C ~ 50°C
Coil Current:
30 mA
Switching Voltage:
250VAC, 250VDC - Max
Coil Power:
-
REACH Status:
REACH Affected
edacadModel:
2981363 Models
edacadModelUrl:
/en/models/2529051
Must Operate Voltage:
-
Package:
Bulk
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
10 ms
Must Release Voltage:
-
standardLeadTime:
8 Weeks
Features:
-
Mounting Type:
DIN Rail
Series:
PSR
Release Time:
10 ms
ECCN:
EAR99
Contact Material:
Silver Nickel (AgNi)
Checking for live stock
FAQs
Yes. You can also search 2981363 on website for other similar products.
We accept all major payment methods for all products including ET11435618. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2981363 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Safety Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 2981363. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 2981363.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11435618 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11435618.
Yes. We ship 2981363 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 2981363. The coil voltage of the product is 24v dc. It is capable of doing 10000000 (mechanical)cycles in a lifetime . Robust coil power of 0.72w. While it carries 230v of maximum DC switching voltage. The product has 4kv isolation coil to contact. It has a maximum operating temperature of +50°c. The terminal is a screw type. It has a maximum 6 a switching current AC . It is integrated with 6a switching current. The contact is equipped with dpdt configuration. The product comes in 17.5mm depth. The product is available in din rail configuration. The product psr-scf- 24uc/urm/2x21, is a highly preferred choice for users. Its accurate length is 75mm. In addition, the height is 60.5mm. It has a minimum 6 a DC switching current . It has a maximum AC switching voltage of 230v. Whereas, the minimum operating temperature of the product is -20°c. It also features an AC switching power of 1.5 kva. It has equipped with 2 poles. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.41.0060. The product is rohs3 compliant. The coil voltage of the product is 24vac/dc. Moreover, it has screw terminal terminal style. The product has -20°c ~ 50°c operating temperature range. It has a coil current of 30 ma. The product's switching voltage is 250vac, 250vdc - max. In addition, it is reach affected. It is shipped in bulk package . It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 10 ms. It has a long 8 weeks standard lead time. The product psr, is a highly preferred choice for users. While 10 ms is its release time. The product is designated with the ear99 code number. The product is made from sturdy silver nickel (agni) materials.
