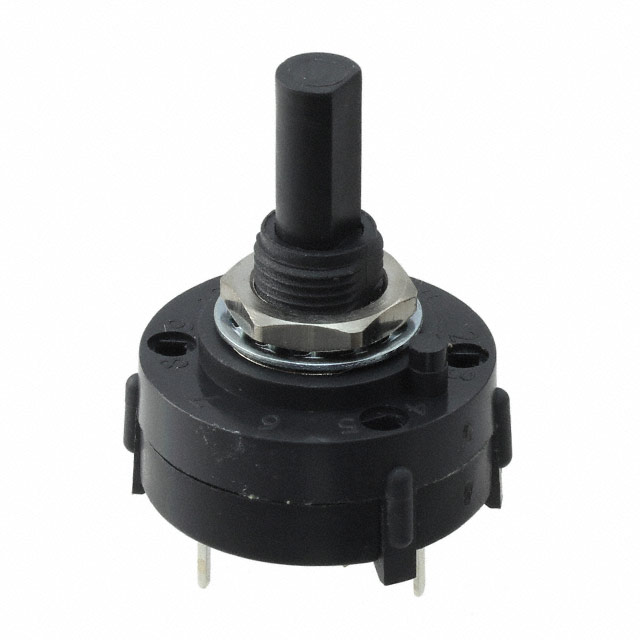

C&K A12405RNCQ
Product Information
Number of Switch Positions:
4
Diameter:
26.2mm
Number of Contacts:
1
Actuator Colour:
Black
Dimensions:
Ø 26.2 x 59mm
Mounting Type:
Panel Mount
Voltage Rating:
125V ac/dc
Contact Current Rating:
2.5 A @ 125 V ac, 350 mA @ 125 V dc
Angle of Throw:
90°
Contact Configuration:
SP4T
Mounting Hole Size:
9.8mm
Height:
59mm
Case Material:
Glass Filled Nylon 6/6
Minimum Operating Temperature:
-30°C
Contact Type:
Non-Shorting
Contact Material:
Brass (Stationary, Terminal), Coin Silver (Movable)
Maximum Operating Temperature:
+85°C
Terminal Type:
PC Pin
Standards Met:
cULus Recognised, UL 94 V-0
Manufacturer Standard Lead Time:
10 Weeks
Current Rating:
2.5A (AC), 350mA (DC)
Voltage Rating - AC:
125V
Termination Style:
PC Pin
Panel Cutout Dimensions:
Circular - 9.80mm Dia
Number of Positions:
4
Actuator Length:
12.70mm
Number of Decks:
1
Depth Behind Panel:
14.48mm
Index Stops:
Fixed
Number of Poles per Deck:
1
Standard Package:
1
Manufacturer:
C&K
Angle of Throw:
90°
Contact Finish:
Silver
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage Rating - DC:
125V
Contact Timing:
Non-Shorting (BBM)
Mounting Type:
Panel Mount, Through Hole
Series:
A
Actuator Type:
Flatted (6.35mm Dia)
Circuit per Deck:
SP4T
Contact Material:
Silver (Ag)
