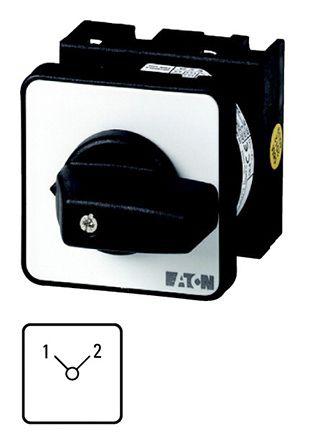

Eaton, DPST 2 Position 90° Changeover Switch, 690 V ac, 20 A, Rotary Knob Actuator

Enrgtech Part No: ET20283217
|
Manufacturer Part No:
038847 & T0-2-8221/E
|
Manufacturer: Eaton

038847---T0-2-8221-E Eaton, DPST 2 Position 90° Changeover Switch, 690 V ac, 20 A, Rotary Knob Actuator

Product Information

Dimensions:

48 x 90 x 48mm

Maximum Current:

20A

Maximum Voltage:

690V ac

Angle of Throw:

90°

Length:

48mm

Number of Positions:

Width:

90mm

Depth:

48mm

Normal State Configuration:

2NO

Electrical Phase:

1, 3

Pole and Throw Configuration:

DPST

Terminal Type:

Screw

Checking for live stock

The Eaton T0-2-8221/E is a robust, panel-mounted rotary cam switch designed for reliable main control and changeover functions in industrial environments. This switch features a DPST (Double Pole, Single Throw) configuration with two stable positions and a 90° throw angle, providing clear circuit status indication. Rated for up to 690V AC and a maximum current of 20A, it is an essential component for safely managing electrical circuits. The switch uses screw terminals for secure wiring and is actuated by a rotary knob.

Why Choose the Eaton T0-2-8221/E Rotary Cam Switch? - The Benefits

Choose this Eaton rotary cam switch for its robust switching performance and high electrical ratings (690V AC, 20A), making it suitable for demanding applications. Its clear 2-position, 90° changeover function provides a simple yet effective means of controlling power flow, ensuring safety and operational clarity in complex systems.

Key Features & Suitable Environments of the Rotary Cam Switch

Switch Configuration: DPST (Double Pole, Single Throw) 2-position changeover.
Electrical Ratings: Maximum voltage of 690V AC and maximum current of 20A.
Actuation: Rotary Knob Actuator with a 90° angle of throw.
Suitable Environments: Industrial control panels, motor control centers, machinery requiring manual power changeover (e.g., switching between two sources or functions), and distribution systems requiring high-reliability switching.
