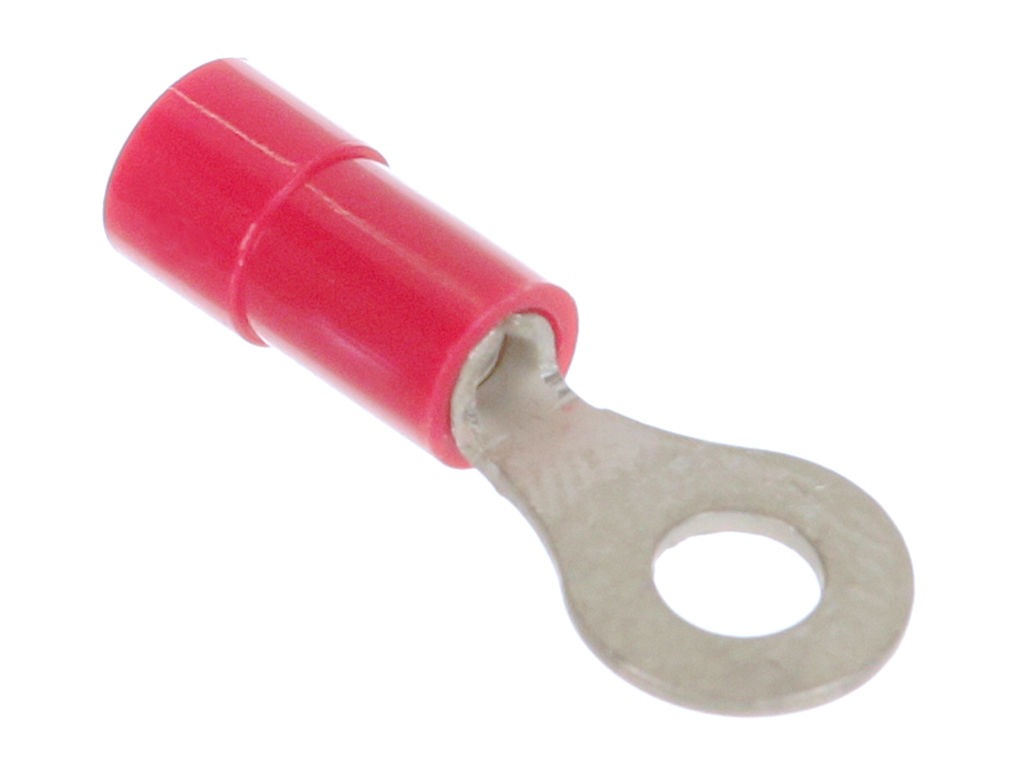

Molex, 19070 Insulated Ring Terminal, 10 (M5) Stud Size, Red

190700015 Molex, 19070 Insulated Ring Terminal, 10 (M5) Stud Size, Red
190700015 Molex, 19070 Insulated Ring Terminal, 10 (M5) Stud Size, Red
Molex

Product Information

Series:
19070
Colour:
Red
Minimum Wire Size AWG:
18 AWG
Stud Size:
M5
Inner Ring Diameter:
5.03mm
Insulation Material:
Polyvinyl Chloride
Contact Plating:
Tin
Overall Length:
22mm
Insulation:
Insulated
Standards/Approvals:
IPC 1752A Class C, RoHS, REACH, IEC-62474, E32244
Maximum Wire Size AWG:
22 AWG
Product Type:
Ring Terminal
Outer Ring Diameter:
8.18mm
RoHs Compliant
Checking for live stock

This is 19070 Insulated Ring Terminal 10 (M5) Stud Size Red manufactured by Molex. The manufacturer part number is 190700015. The product 19070, is a highly preferred choice for users. It has a decent red colour. While the minimum wire size AWG includes 18 awg. It has a standard m5 size stud . Moreover, the inner ring is about 5.03mm in diameter . It has a robust polyvinyl chloride insulation material. The high-quality tin is used as contact plating material. It has an overall length of 22mm. Insulation Option: insulated. Its maximum wires size includes 22 awg. ring terminal is a versatile product designed to provide user-defined applications. In addition, its outlet ring diameter is about 8.18mm .

pdf icon
Datasheet - 190700015(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship 190700015 Internationally to many countries around the world.
Yes. You can also search 190700015 on website for other similar products.
We accept all major payment methods for all products including ET28289239. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET28289239 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET28289239.
You can order Molex brand products with 190700015 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ring Terminals category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex, 19070 Insulated Ring Terminal, 10 (M5) Stud Size, Red. You can also check on our website or by contacting our customer support team for further order details on Molex, 19070 Insulated Ring Terminal, 10 (M5) Stud Size, Red.
