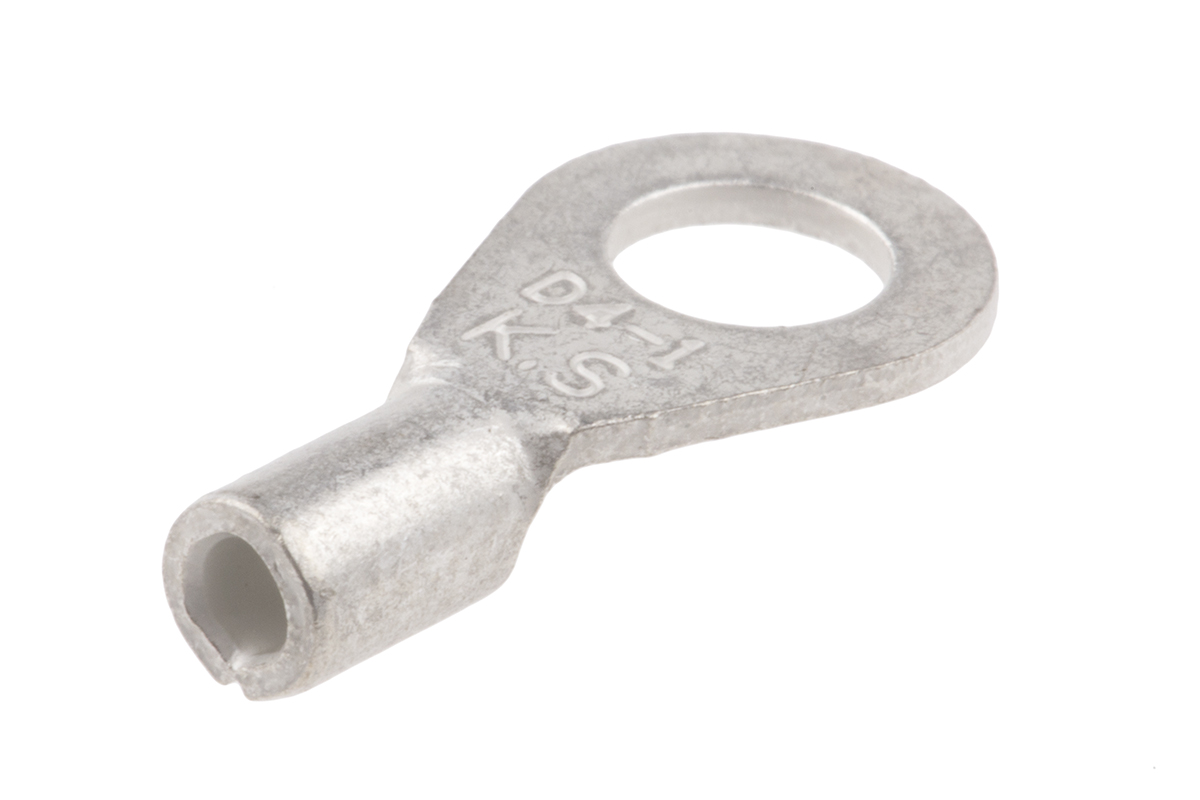

RS Pro Uninsulated Crimp Ring Terminal, M4 Stud Size, 0.5mm² to 1.5mm², 22AWG to 16AWG

809-2228 RS Pro Uninsulated Crimp Ring Terminal, M4 Stud Size, 0.5mm² to 1.5mm², 22AWG to 16AWG
809-2228
809-2228 RS Pro Uninsulated Crimp Ring Terminal, M4 Stud Size, 0.5mm² to 1.5mm², 22AWG to 16AWG
RS Pro

Product Information

Contact Plating:
Tin
Series:
DRNB
Colour:
Grey
Minimum Wire Size AWG:
22 AWG
Thickness:
0.8mm
Stud Size:
M4
Inner Ring Diameter:
4.3mm
Outer Ring Diameter:
8mm
Overall Length:
16mm
Insulation:
Uninsulated
Standards/Approvals:
ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS
Maximum Wire Size AWG:
16 AWG
Product Type:
Ring Terminal
Maximum Operating Temperature:
150°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper
RoHs Compliant
Checking for live stock

This is Uninsulated Crimp Ring Terminal M4 Stud Size 0.5mm² to 1.5mm² 22AWG to 16AWG manufactured by RS Pro. The manufacturer part number is 809-2228. The high-quality tin is used as contact plating material. The product drnb, is a highly preferred choice for users. It has a decent grey colour. While the minimum wire size AWG includes 22 awg. It is 0.8mm thick. It has a standard m4 size stud . Moreover, the inner ring is about 4.3mm in diameter . In addition, its outlet ring diameter is about 8mm . It has an overall length of 16mm. Insulation Option: uninsulated. Its maximum wires size includes 16 awg. ring terminal is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy copper materials.

pdf icon
RS Pro Datasheet(Technical Reference)
pdf icon
Manufacturer Information(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship 809-2228 Internationally to many countries around the world.
Yes. You can also search 809-2228 on website for other similar products.
We accept all major payment methods for all products including ET16743670. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16743670 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"RS Pro" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16743670.
You can order RS Pro brand products with 809-2228 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ring Terminals category are shipped in lowest possible time.
You will get a confirmation email regarding your order of RS Pro Uninsulated Crimp Ring Terminal, M4 Stud Size, 0.5mm² to 1.5mm², 22AWG to 16AWG. You can also check on our website or by contacting our customer support team for further order details on RS Pro Uninsulated Crimp Ring Terminal, M4 Stud Size, 0.5mm² to 1.5mm², 22AWG to 16AWG.
