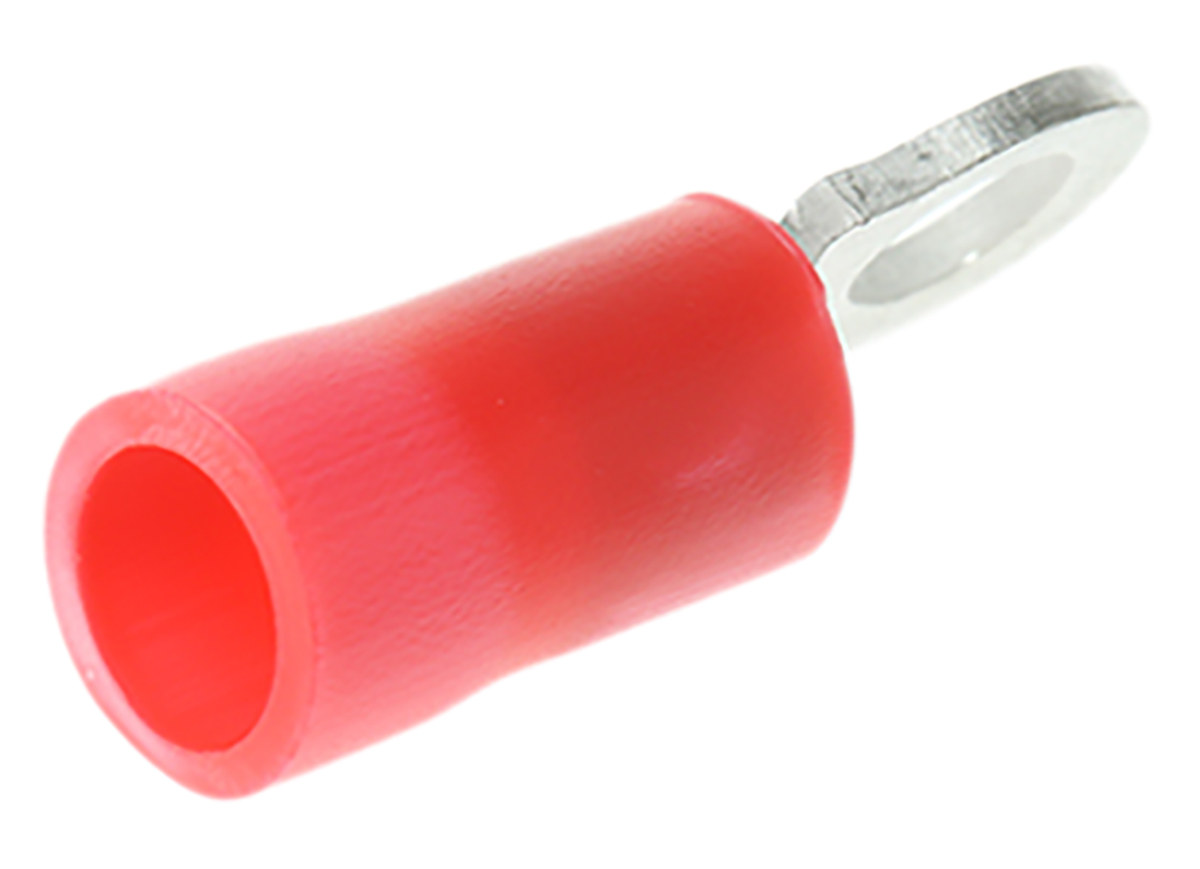

TE Connectivity PLASTI-GRIP Series Insulated Tin Plated Crimp Ring Terminal, M3 Stud Size, 0.26mm² to 1mm², 22AWG
Product Information
Maximum Wire Size mm²:
1mm²
Series:
PLASTI-GRIP
Colour:
Red
Minimum Wire Size AWG:
22AWG
Stud Size:
M3
Contact Plating:
Tin
Overall Length:
17.5mm
Insulation:
Insulated
Maximum Wire Size AWG:
18AWG
Minimum Wire Size mm²:
0.26mm²
Contact Material:
Copper
Technical Documents
Checking for live stock
More Information
TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals
PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of...
TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals
PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily.
Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²
TE Connectivity Plasti-Grip Terminals
Temperature range:
PVC
-25°C to +90°C
Nylon
-55°C to +105°C
Termination material:
Tin plated Copper
Termination insulation:
Rings, spades, wire pins
6.35mm blades, splices
PVC
6.35mm receptacles
Nylon 6.6
(including shrouded)
Read more
