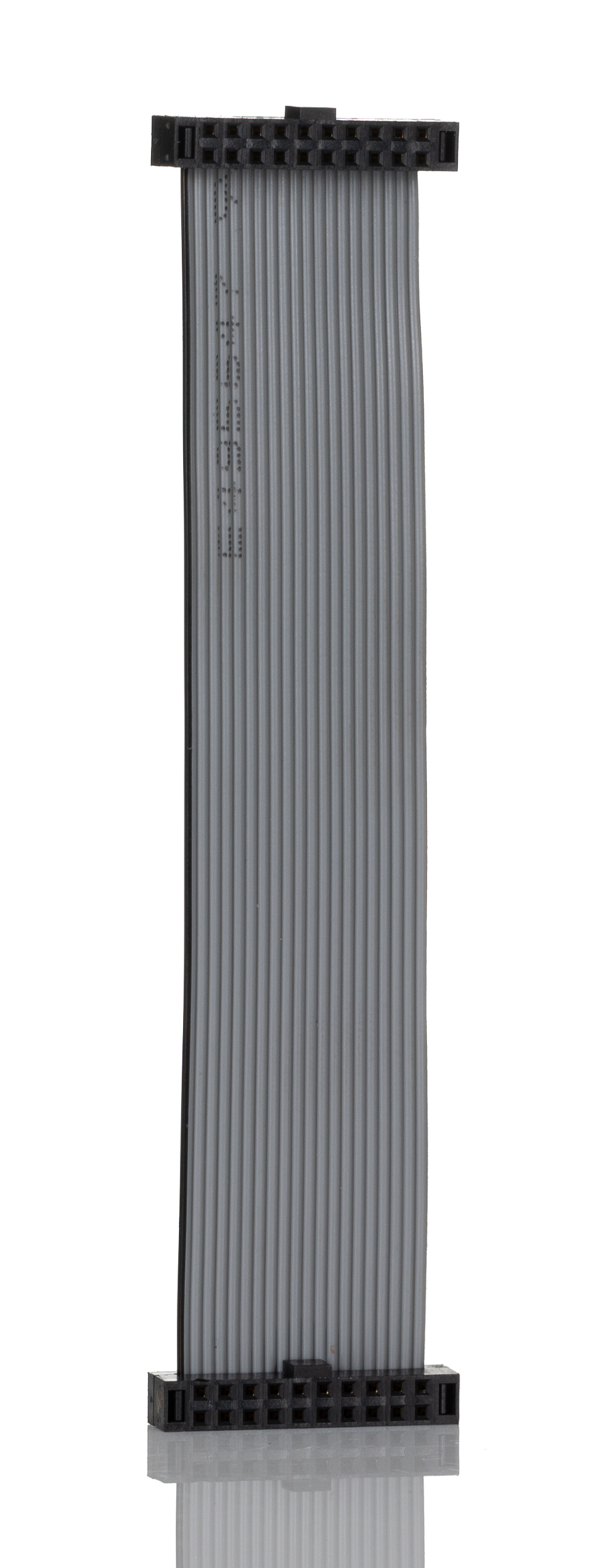

Flat Serial Cable Assembly 100mm Terminal Strip to Terminal Strip 2X10, Ways , Double End to Double End

TCSD-10-D-04-00-01-N Flat Serial Cable Assembly 100mm Terminal Strip to Terminal Strip 2X10, Ways , Double End to Double End
TCSD-10-D-04.00-01-N
Samtec

Product Information

American Wire Gauge:
28 AWG
Current Rating:
1 A
Standards Met:
RoHS Compliant, UL
Operating Temperature Range:
-40 → +105 °C
Series:
TCSD
Connector 1 Gender:
Female
Core Strands:
7/36
Sheath Colour:
Grey
Ribbon Cable Type:
Flat
Length:
100mm
Terminated/Unterminated:
Terminated
Connector 2 Gender:
Female
Minimum Operating Temperature:
-40°C
Pitch:
2mm
Connector 2:
Tiger Eye IDC
Number of Ways:
2x10
Conductor Strand Type:
Stranded
Connector 1:
Tiger Eye IDC
Maximum Operating Temperature:
+105°C
RoHs Compliant
Checking for live stock

This is Flat Serial Cable Assembly 100mm Terminal Strip to Terminal Strip 2X10 Ways Double End to Double End manufactured by Samtec. The manufacturer part number is TCSD-10-D-04.00-01-N. Features 28 awg - American Wire Gauge. The product has a current rating of 1 a. The product complies with all safety standards, such as rohs compliant, ul. The product has -40 → +105 °c of operating temperature range. The product tcsd, is a highly preferred choice for users. This connector 1 is a female. The core strands are 7/36. The sheath has an adorable grey colour. It includes a/an flat type ribbon cable . Its accurate length is 100mm. Termination Options -terminated. Connector 2 is a female connector. Whereas, the minimum operating temperature of the product is -40°c. Moreover, the product is 2mm. While the Connector 2 is tiger eye idc. It comprises 2x10 ways. It has a stranded type conductor strand . Connector 1 is tiger eye idc. It has a maximum operating temperature of +105°c.

pdf icon
Datasheet(Technical Reference)
pdf icon
Line Drawing - TCSD-10-D-04.00-01-N(Technical Reference)
