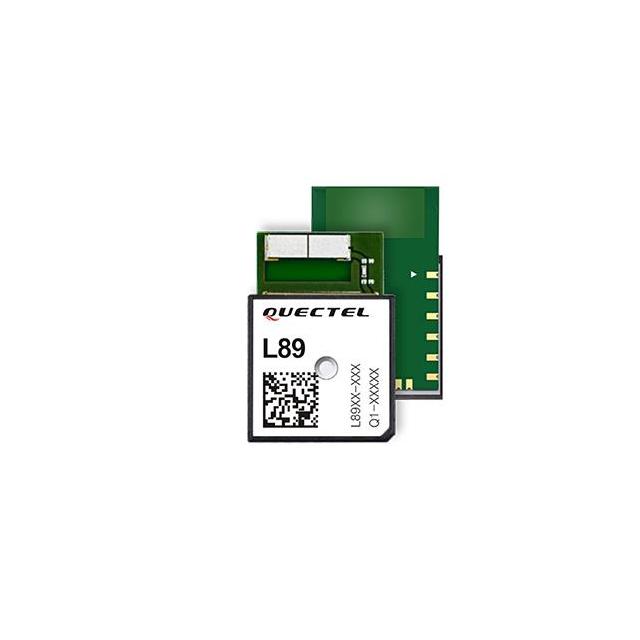

Quectel L89HB-S90

L89HB-S90 Quectel
Quectel

Product Information

HTSUS:
8526.91.0040
RoHS Status:
RoHS Compliant
DigiKey Programmable:
Not Verified
Operating Temperature:
-40°C ~ 85°C
Memory Size:
-
Package / Case:
16-SMD Module
Current - Transmitting:
-
Current - Receiving:
-
Modulation:
-
REACH Status:
REACH Unaffected
edacadModel:
L89HB-S90 Models
Data Rate:
921.6kbps
edacadModelUrl:
/en/models/13278292
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
Navigation
Protocol:
BeiDou, Galileo, GLONASS, GPS, GNSS
Utilized IC / Part:
-
Mounting Type:
Surface Mount
Antenna Type:
Antenna Not Included
Series:
-
Sensitivity:
-163dBm
Serial Interfaces:
I2C, UART
Frequency:
1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz
Voltage - Supply:
3.1V ~ 4.3V
Power - Output:
-
Base Product Number:
L89
ECCN:
7A994
Checking for live stock

This is manufactured by Quectel. The manufacturer part number is L89HB-S90. It is assigned with possible HTSUS value of 8526.91.0040. The product is rohs compliant. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in 16-smd module. In addition, it is reach unaffected. It has a maximised data speed rate of 921.6kbps. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes navigation. The product features a beidou, galileo, glonass, gps, gnss protocol. The product is available in surface mount configuration. It is a antenna not included antenna. The sensitivity given includes -163dbm. It features i2c, uart serial interface. Supplied with 1.176ghz, 1.561ghz, 1.575ghz, 1.602ghz of frequency. It has optimum voltage supply of 3.1v ~ 4.3v. Moreover, it corresponds to l89, a base product number of the product. The product is designated with the 7a994 code number.

pdf icon
L89(Datasheets)
pdf icon
L89Hx-S90 Component Update 18/Oct/2023(PCN Design/Specification)
pdf icon
L89HA-S90 Rev 1/Jul/2022(PCN Design/Specification)
pdf icon
All Parts Pkg Chgs 1/Nov/2021(PCN Packaging)
