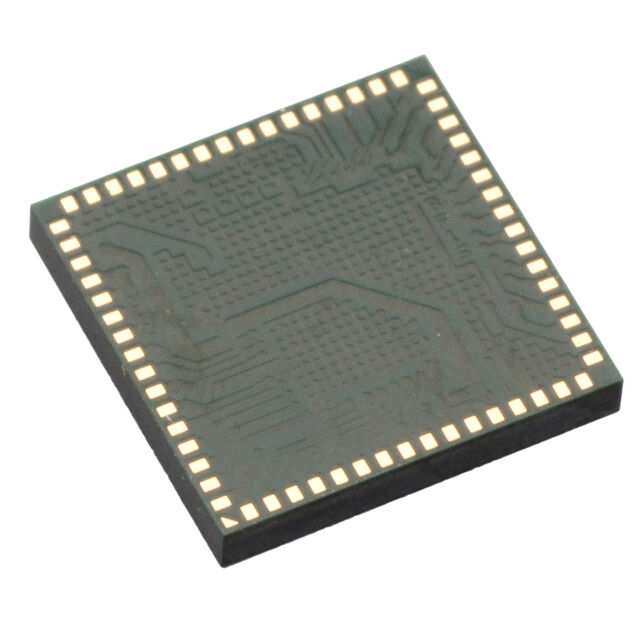

Silicon Labs ZGM130S037HGN2 RF Transceiver, 64-Pin LGA
Product Information
Minimum Operating Band 2 Frequency:
902MHz
Dimensions:
9 x 9 x 1.05mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Minimum Operating Supply Voltage:
1.8 V
Maximum Operating Band 1 Frequency:
876MHz
Height:
1.05mm
Width:
9mm
Length:
9mm
Maximum Operating Band 2 Frequency:
930MHz
Package Type:
LGA
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.8 V
Number of Operating Bands:
2
Minimum Operating Band 1 Frequency:
863MHz
Technology:
32 bit ARM Cortex M4
Pin Count:
64
HTSUS:
8517.62.0090
RoHS Status:
RoHS Compliant
DigiKey Programmable:
Not Verified
Operating Temperature:
-40°C ~ 85°C (TA)
Memory Size:
512kB Flash, 64kB RAM
Package / Case:
64-LFLGA
Current - Transmitting:
13.3mA ~ 40.7mA
Current - Receiving:
9.5mA ~ 9.9mA
Modulation:
2FSK, GFSK
edacadModel:
ZGM130S037HGN2 Models
Data Rate:
100Kbps
edacadModelUrl:
/en/models/10642892
Package:
Tray
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
General ISM < 1GHz
standardLeadTime:
20 Weeks
Protocol:
Z-Wave®
Utilized IC / Part:
ZGM130S
Mounting Type:
Surface Mount
Antenna Type:
Antenna Not Included
Series:
Z-Wave®
Sensitivity:
-102.6dBm
Serial Interfaces:
ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART
Frequency:
863MHz ~ 876MHz, 902MHz ~ 930MHz
Voltage - Supply:
1.8V ~ 3.8V
Power - Output:
13dBm
Base Product Number:
ZGM130
ECCN:
5A992C
Checking for live stock
FAQs
Yes. You can also search ZGM130S037HGN2 on website for other similar products.
We accept all major payment methods for all products including ET21573287. Please check your shopping cart at the time of order.
You can order Silicon Labs brand products with ZGM130S037HGN2 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in RF Transceiver Modules and Modems category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Silicon Labs ZGM130S037HGN2 RF Transceiver, 64-Pin LGA. You can also check on our website or by contacting our customer support team for further order details on Silicon Labs ZGM130S037HGN2 RF Transceiver, 64-Pin LGA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21573287 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Silicon Labs" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21573287.
Yes. We ship ZGM130S037HGN2 Internationally to many countries around the world.
This is RF Transceiver 64-Pin LGA manufactured by Silicon Labs. The manufacturer part number is ZGM130S037HGN2. The product has 902mhz of minimum operating band 2 frequency . The given dimensions of the product include 9 x 9 x 1.05mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. While its minimum operating supply voltage is 1.8 v. It has a maximum 876mhz operating band 1 frequency . In addition, the height is 1.05mm. Furthermore, the product is 9mm wide. Its accurate length is 9mm. It has a maximum operating of 930mhz band 2 frequency . The package is a sort of lga. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.8 v maximum operating supply voltage. It has 2 operating bands . Moreover, it has a minimum 863mhz operating band 1 frequency . This product use 32 bit arm cortex m4 technology. It contains 64 pins. It is assigned with possible HTSUS value of 8517.62.0090. The product is rohs compliant. The product has -40°c ~ 85°c (ta) operating temperature range. It holds a typical memory size of 512kb flash, 64kb ram. Moreover, the product comes in 64-lflga. It carries 13.3ma ~ 40.7ma transmission current. The current receiving of the product is 9.5ma ~ 9.9ma. Features 2fsk, gfsk modulation. It has a maximised data speed rate of 100kbps. It is shipped in tray package . Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes general ism < 1ghz. It has a long 20 weeks standard lead time. The product features a z-wave® protocol. Additionally, [Utilised IC / Part] is the used part of the product. It is a antenna not included antenna. The product z-wave®, is a highly preferred choice for users. The sensitivity given includes -102.6dbm. It features adc, gpio, i2c, i2s, irda, pwm, spi, uart serial interface. Supplied with 863mhz ~ 876mhz, 902mhz ~ 930mhz of frequency. It has optimum voltage supply of 1.8v ~ 3.8v. The product has an output power 13dbm. Moreover, it corresponds to zgm130, a base product number of the product. The product is designated with the 5a992c code number.
