Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.433" (11.00mm)
Applications:
5G, LTE
Gain:
5.3dBi, 6dBi, 6dBi, 7.1dBi, 7dBi, 8.9dBi, 8.5dBi, 5.5dBi, 3.9dBi, 4.9dBi
Number of Bands:
9
Package:
Bag
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular
Frequency (Center/Band):
657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 3.75GHz, 4.7GHz, 5.5375GHz
Termination:
SMA Male
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Blade, Tilt
Series:
-
Power - Max:
10 W
VSWR:
1.6, 1.7, 1.8, 1.9, 2, 2.1, 3.9
Return Loss:
-
ECCN:
EAR99

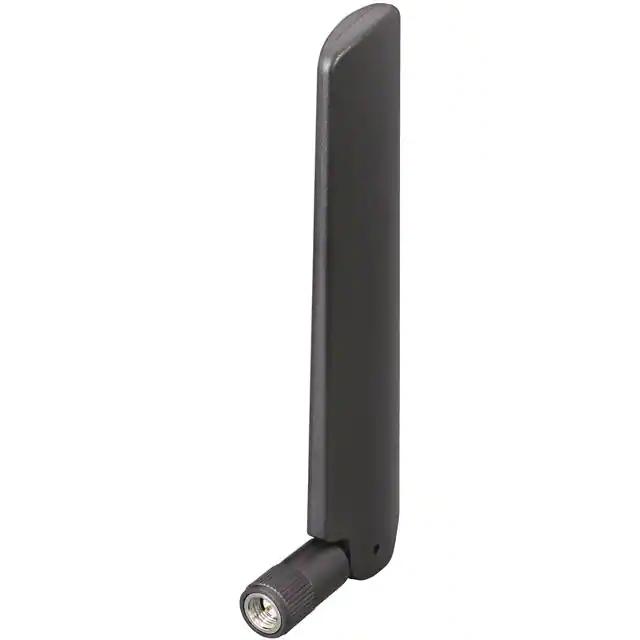

This is manufactured by Linx Technologies Inc.. The manufacturer part number is ANT-5GWWS6-SMA. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 803mhz, 791mhz ~ 894mhz, 832mhz ~ 1.518ghz, 1.525ghz ~ 1.661ghz, 1.695ghz ~ 2.2ghz, 2.3ghz ~ 2.69ghz, 3.3ghz ~ 4.2ghz, 4.4ghz ~ 5ghz, 5.15ghz ~ 5.925ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.433" (11.00mm) is the maximum height of the product. The product is widely employed in 5g, lte. The 5.3dbi, 6dbi, 6dbi, 7.1dbi, 7dbi, 8.9dbi, 8.5dbi, 5.5dbi, 3.9dbi, 4.9dbi is the gain value of a bespoke product. It contains 9 bands. It is shipped in bag package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular. While it has a frequency of 657.5mhz, 750.5mhz, 842.5mhz, 1.175ghz, 1.593ghz, 1.9475ghz, 3.75ghz, 4.7ghz, 5.5375ghz at center/band. The product features sma male termination style. It has a long 12 weeks standard lead time. The product is available in connector mount configuration. It is a blade, tilt antenna. The maximum power of the product is 10 w. VSWR Information: 1.6, 1.7, 1.8, 1.9, 2, 2.1, 3.9. The product is designated with the ear99 code number.
