Frequency Range:
700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz
HTSUS:
8517.71.0000
Frequency Group:
Wide Band
Height (Max):
0.079" (2.00mm)
Applications:
LTE
Gain:
1.53dBi, 0.95dBi, 3.77dBi, 4.12dBi, 2.94dBi, 4.45dBi, 3.22dBi, 3.83dBi, 2.9dBi
Number of Bands:
9
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
-
Termination:
-
Ingress Protection:
-
Features:
Cable - 75mm
Mounting Type:
Adhesive
Antenna Type:
PCB Trace
Series:
-
VSWR:
2.78, 2.54, 1.76, 1.27, 2.21, 2.71, 2.41, 1.74, 1.12
Return Loss:
-
ECCN:
EAR99

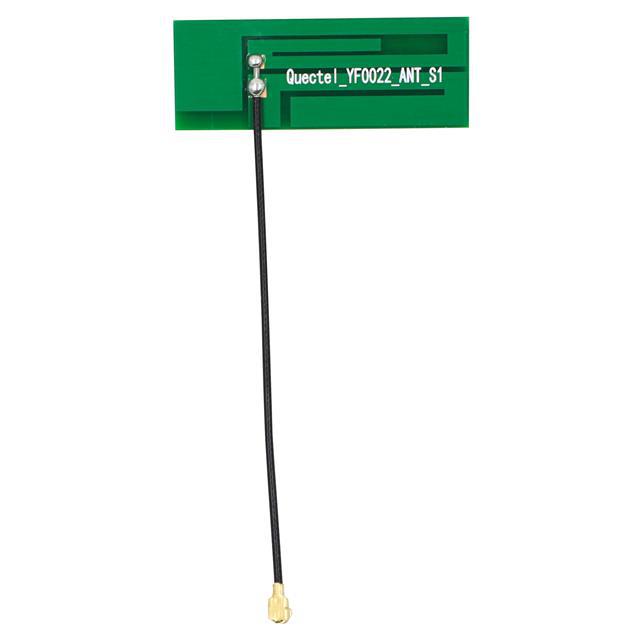

This is manufactured by Quectel. The manufacturer part number is YF0022AA. The frequency range includes 700mhz ~ 960mhz, 1.71ghz ~ 2.17ghz, 2.3ghz ~ 2.69ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product boasts a wide band frequency group. Additionally, the 0.079" (2.00mm) is the maximum height of the product. The product is widely employed in lte. The 1.53dbi, 0.95dbi, 3.77dbi, 4.12dbi, 2.94dbi, 4.45dbi, 3.22dbi, 3.83dbi, 2.9dbi is the gain value of a bespoke product. It contains 9 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. The splendid features of the product include cable - 75mm. The product is available in adhesive configuration. It is a pcb trace antenna. VSWR Information: 2.78, 2.54, 1.76, 1.27, 2.21, 2.71, 2.41, 1.74, 1.12. The product is designated with the ear99 code number.
