Frequency Range:
698MHz ~ 960MHz, 700MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.58GHz, 1.556GHz ~ 1.566GHz, 1.57GHz ~ 1.61GHz, 1.71GHz ~ 1.71GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
HTSUS:
8529.10.9100
Frequency Group:
Wide Band
Height (Max):
0.689" (17.50mm)
Applications:
GNSS, LTE, Wi-Fi
Gain:
4dBi, 0.42dBi, 4dBi, -2.08dBi, 5dBi, 5dBi
Number of Bands:
12
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
829MHz, 830MHz, 1.228GHz, 1.505GHz, 1.561GHz, 1.575GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz
Termination:
Fakra
standardLeadTime:
6 Weeks
Ingress Protection:
IP66
Features:
Cable - 3m, LNA
Mounting Type:
Adhesive
Antenna Type:
Dome
Series:
-
VSWR:
3
Return Loss:
-
ECCN:
7A994

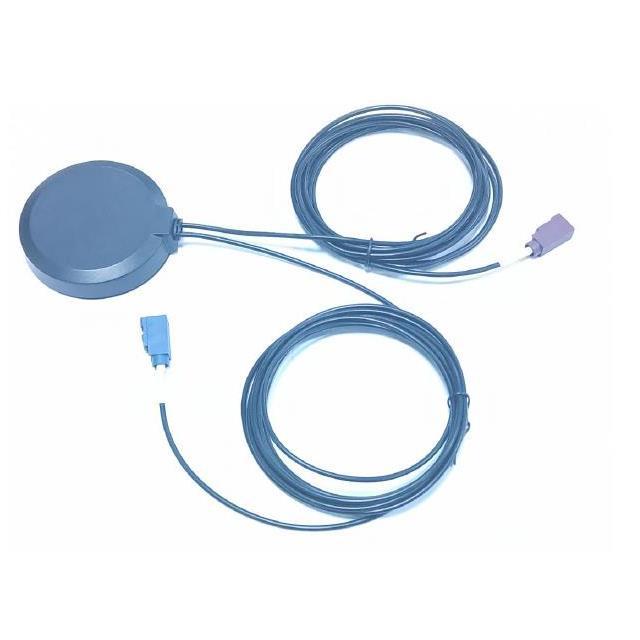

This is manufactured by Quectel. The manufacturer part number is YEMA003AA. The frequency range includes 698mhz ~ 960mhz, 700mhz ~ 960mhz, 1.176ghz ~ 1.28ghz, 1.4ghz ~ 1.58ghz, 1.556ghz ~ 1.566ghz, 1.57ghz ~ 1.61ghz, 1.71ghz ~ 1.71ghz, 1.71ghz ~ 2.17ghz, 2.17ghz ~ 2.69ghz, 3.3ghz ~ 4ghz, 4ghz ~ 5ghz, 5ghz ~ 6ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product boasts a wide band frequency group. Additionally, the 0.689" (17.50mm) is the maximum height of the product. The product is widely employed in gnss, lte, wi-fi. The 4dbi, 0.42dbi, 4dbi, -2.08dbi, 5dbi, 5dbi is the gain value of a bespoke product. It contains 12 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 829mhz, 830mhz, 1.228ghz, 1.505ghz, 1.561ghz, 1.575ghz, 1.94ghz, 2.2ghz, 2.43ghz, 3.65ghz, 4.5ghz, 5.5ghz at center/band. The product features fakra termination style. It has a long 6 weeks standard lead time. It is IP rated with ip66. The splendid features of the product include cable - 3m, lna. The product is available in adhesive configuration. It is a dome antenna. VSWR Information: 3. The product is designated with the 7a994 code number.
