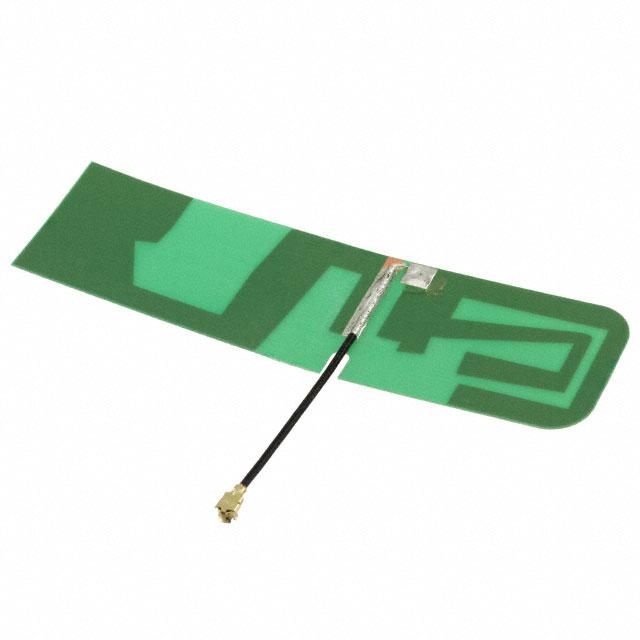

Pulse Electronics W3501
Product Information
Frequency Range:
824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Height (Max):
0.008" (0.20mm)
REACH Status:
REACH Unaffected
Applications:
GSM
Gain:
1.5dBi, 3.75dBi
Number of Bands:
2
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
892MHz, 1.9GHz
Termination:
U.FL (UMCC), IPEX MHF1
standardLeadTime:
9 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
PCB Trace
Series:
-
VSWR:
-
Return Loss:
-7dB, -8dB
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search W3501 on website for other similar products.
We accept all major payment methods for all products including ET23565742. Please check your shopping cart at the time of order.
You can order Pulse Electronics brand products with W3501 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in RF Antennas category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Pulse Electronics W3501. You can also check on our website or by contacting our customer support team for further order details on Pulse Electronics W3501.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23565742 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Pulse Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23565742.
Yes. We ship W3501 Internationally to many countries around the world.
This is manufactured by Pulse Electronics. The manufacturer part number is W3501. The frequency range includes 824mhz ~ 960mhz, 1.71ghz ~ 1.99ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a uhf (300mhz ~ 1ghz), uhf (1ghz ~ 2ghz) frequency group. Additionally, the 0.008" (0.20mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in gsm. The 1.5dbi, 3.75dbi is the gain value of a bespoke product. It contains 2 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 892mhz, 1.9ghz at center/band. The product features u.fl (umcc), ipex mhf1 termination style. It has a long 9 weeks standard lead time. The product is available in surface mount configuration. It is a pcb trace antenna. It has a return loss of -7db, -8db. The product is designated with the ear99 code number.
