Frequency Range:
698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.7GHz ~ 2.7GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz
HTSUS:
8529.10.9100
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
3.400" (86.36mm)
Applications:
GPS, LTE, Wi-Fi
Gain:
4.1dBi, 27dB, 5.9dBi, 6.2dBi, 6.5dBi
Number of Bands:
5
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
829MHz, 1.575GHz, 2.2GHz, 2.5GHz, 5.4GHz
Termination:
SMA Male (3), RP-SMA Male (2)
standardLeadTime:
2 Weeks
Ingress Protection:
IP67
Features:
Cable - 5.18m
Mounting Type:
Panel Mount
Antenna Type:
Dome
Series:
-
Power - Max:
50 W
VSWR:
2, 1.5, 2
Return Loss:
-
Base Product Number:
VHP69273
ECCN:
7A994

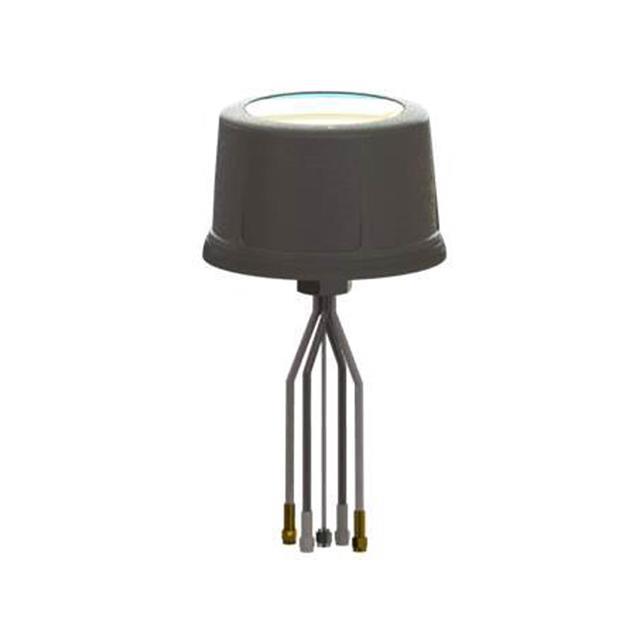

This is manufactured by TE Connectivity Laird. The manufacturer part number is VHP69273B22G-518A. The frequency range includes 698mhz ~ 960mhz, 1.572ghz ~ 1.578ghz, 1.7ghz ~ 2.7ghz, 2.3ghz ~ 2.7ghz, 4.9ghz ~ 5.9ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 3.400" (86.36mm) is the maximum height of the product. The product is widely employed in gps, lte, wi-fi. The 4.1dbi, 27db, 5.9dbi, 6.2dbi, 6.5dbi is the gain value of a bespoke product. It contains 5 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 829mhz, 1.575ghz, 2.2ghz, 2.5ghz, 5.4ghz at center/band. The product features sma male (3), rp-sma male (2) termination style. It has a long 2 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 5.18m. The product is available in panel mount configuration. It is a dome antenna. The maximum power of the product is 50 w. VSWR Information: 2, 1.5, 2. Moreover, it corresponds to vhp69273, a base product number of the product. The product is designated with the 7a994 code number.
