Frequency Range:
807MHz ~ 925MHz, 2.41GHz ~ 2.485GHz, 4.4GHz ~ 6GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Height (Max):
0.039" (1.00mm)
REACH Status:
REACH Unaffected
Applications:
Bluetooth, IoT, ISM, LP-WAN, RFID, WLAN
Gain:
0.4dBi, 2.7dBi, 3.9dBi
Number of Bands:
3
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
802.15.4, Cellular, General ISM, WiFi
Frequency (Center/Band):
866MHz, 2.4475GHz, 5.2GHz
Termination:
U.FL (UMCC), IPEX MHF1
Ingress Protection:
-
Features:
-
Mounting Type:
Adhesive, Bracket
Antenna Type:
PCB Trace
Series:
AN250201
Power - Max:
10 W
VSWR:
1.93, 1.93, 2.1
Return Loss:
-9dB, -10dB, -10dB
ECCN:
EAR99

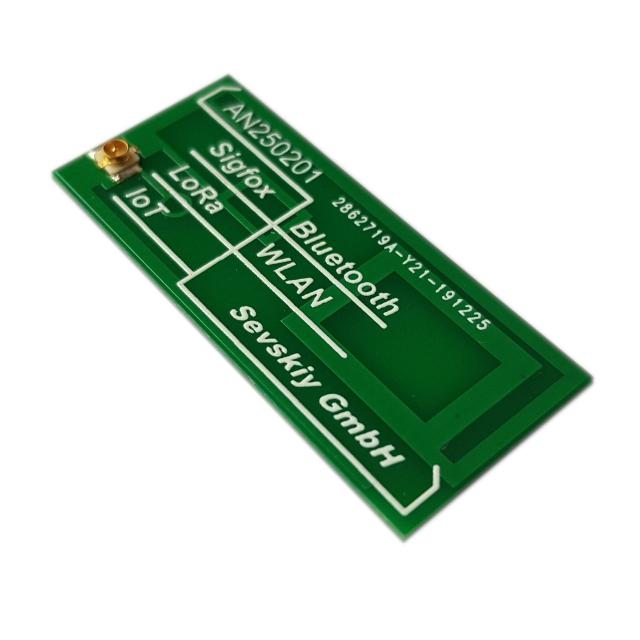

This is manufactured by Sevskiy GmbH. The manufacturer part number is AN250201-01H. The frequency range includes 807mhz ~ 925mhz, 2.41ghz ~ 2.485ghz, 4.4ghz ~ 6ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a uhf (300mhz ~ 1ghz), uhf (2ghz ~ 3ghz), shf (f > 4ghz) frequency group. Additionally, the 0.039" (1.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in bluetooth, iot, ism, lp-wan, rfid, wlan. The 0.4dbi, 2.7dbi, 3.9dbi is the gain value of a bespoke product. It contains 3 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes 802.15.4, cellular, general ism, wifi. While it has a frequency of 866mhz, 2.4475ghz, 5.2ghz at center/band. The product features u.fl (umcc), ipex mhf1 termination style. The product is available in adhesive, bracket configuration. It is a pcb trace antenna. The product an250201, is a highly preferred choice for users. The maximum power of the product is 10 w. VSWR Information: 1.93, 1.93, 2.1. It has a return loss of -9db, -10db, -10db. The product is designated with the ear99 code number.
