Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
1.378" (35.00mm)
REACH Status:
REACH Unaffected
Applications:
3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi
Gain:
2.8dBi, 4dBi, 4.1dBi, 3.8dBi, 28dBi, 28dBi, 28dBi, 5.2dBi, 6.1dBi, 5.7dBi, 5.4dBi, 7.3dBi
Number of Bands:
12
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.495GHz, 3.75GHz, 4.7GHz, 5.5375GHz
Termination:
SMA Male (2)
standardLeadTime:
11 Weeks
Ingress Protection:
IP67
Features:
Cable - 1m, LNA, Filter
Mounting Type:
Panel Mount
Antenna Type:
Module
Series:
-
Power - Max:
10 W
VSWR:
2, 3
Return Loss:
-
ECCN:
7A994

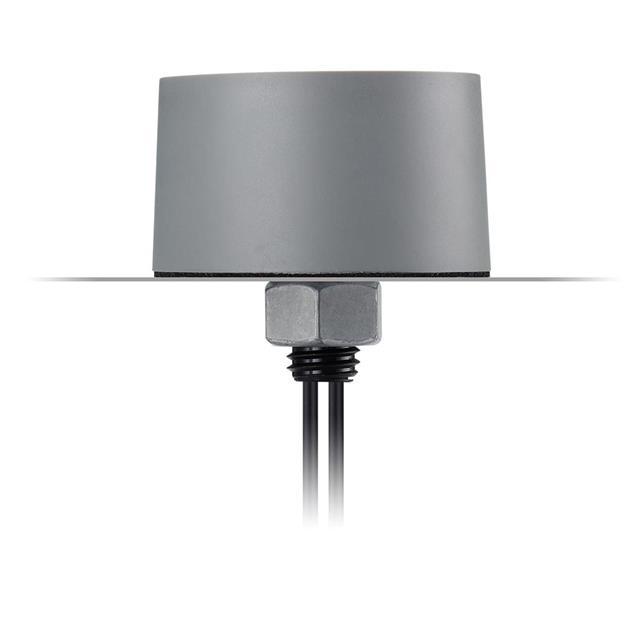

This is manufactured by Taoglas Limited. The manufacturer part number is MA114.B.LB.001. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 806mhz, 824mhz ~ 960mhz, 1.427ghz ~ 1.518ghz, 1.71ghz ~ 2.2ghz, 2.3ghz ~ 2.69ghz, 3.3ghz ~ 4.2ghz, 4.4ghz ~ 5ghz, 5.15ghz ~ 5.925ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 1.378" (35.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 3g, 4g, 5g, beidou, glonass, gps, gnss, lte, wi-fi. The 2.8dbi, 4dbi, 4.1dbi, 3.8dbi, 28dbi, 28dbi, 28dbi, 5.2dbi, 6.1dbi, 5.7dbi, 5.4dbi, 7.3dbi is the gain value of a bespoke product. It contains 12 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 657.5mhz, 752mhz, 892mhz, 1.4725ghz, 1.561ghz, 1.575ghz, 1.602ghz, 1.955ghz, 2.495ghz, 3.75ghz, 4.7ghz, 5.5375ghz at center/band. The product features sma male (2) termination style. It has a long 11 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 1m, lna, filter. The product is available in panel mount configuration. It is a module antenna. The maximum power of the product is 10 w. VSWR Information: 2, 3. The product is designated with the 7a994 code number.
