Frequency Range:
791MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ , 2.5GHz ~ 2.69GHz
HTSUS:
8517.79.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.031" (0.80mm)
REACH Status:
REACH info available upon request
Applications:
2G, 3G, 4G/LTE, Bluetooth, GPS, IoT, LPWAN, Wi-Fi, ZigBee
Gain:
3dBi
Number of Bands:
6
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
802.15.4, Bluetooth, Cellular, Navigation, WiFi
Frequency (Center/Band):
875.5MHz, 1.5845GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz
Termination:
SMA Male
standardLeadTime:
10 Weeks
Ingress Protection:
-
Features:
Cable - 150mm
Mounting Type:
Surface Mount
Antenna Type:
PCB Trace
Series:
MAX Wideband
VSWR:
1.5, 1.6, 1.7
Return Loss:
10.1dB, 11.2dB, 14.7dB, 15.6dB, 17dB, 28.9dB
ECCN:
EAR99

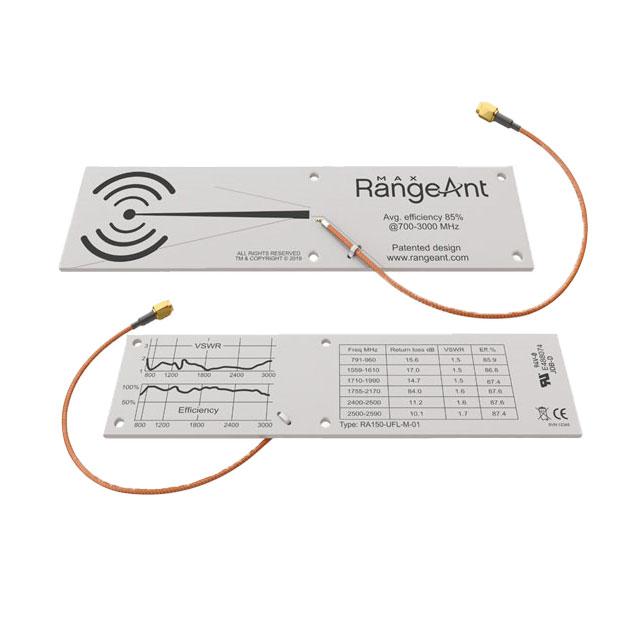

This is manufactured by RangeAnt. The manufacturer part number is RA150-CX1. The frequency range includes 791mhz ~ 960mhz, 1.559ghz ~ 1.61ghz, 1.71ghz ~ 1.99ghz, 1.755ghz ~ 2.17ghz, 2.4ghz ~ , 2.5ghz ~ 2.69ghz. It is assigned with possible HTSUS value of 8517.79.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.031" (0.80mm) is the maximum height of the product. In addition, it is reach info available upon request. The product is widely employed in 2g, 3g, 4g/lte, bluetooth, gps, iot, lpwan, wi-fi, zigbee. The 3dbi is the gain value of a bespoke product. It contains 6 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes 802.15.4, bluetooth, cellular, navigation, wifi. While it has a frequency of 875.5mhz, 1.5845ghz, 1.85ghz, 1.9625ghz, 2.45ghz, 2.595ghz at center/band. The product features sma male termination style. It has a long 10 weeks standard lead time. The splendid features of the product include cable - 150mm. The product is available in surface mount configuration. It is a pcb trace antenna. The product max wideband, is a highly preferred choice for users. VSWR Information: 1.5, 1.6, 1.7. It has a return loss of 10.1db, 11.2db, 14.7db, 15.6db, 17db, 28.9db. The product is designated with the ear99 code number.
