Frequency Range:
698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
HTSUS:
8517.71.0000
Frequency Group:
Wide Band
Height (Max):
0.037" (0.95mm)
Applications:
6G
Gain:
0.51dBi, 2.4dBi, 4.5dBi, 3.8dBi, 3.9dBi, 2.3dBi
Number of Bands:
8
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz
Termination:
IPEX MHF4
Ingress Protection:
-
Features:
Cable - 188.5mm
Mounting Type:
Adhesive
Antenna Type:
PCB Trace
Series:
-
VSWR:
1.96, 2.1, 2.19, 2.2, 2.31, 4.5
Return Loss:
-
ECCN:
EAR99

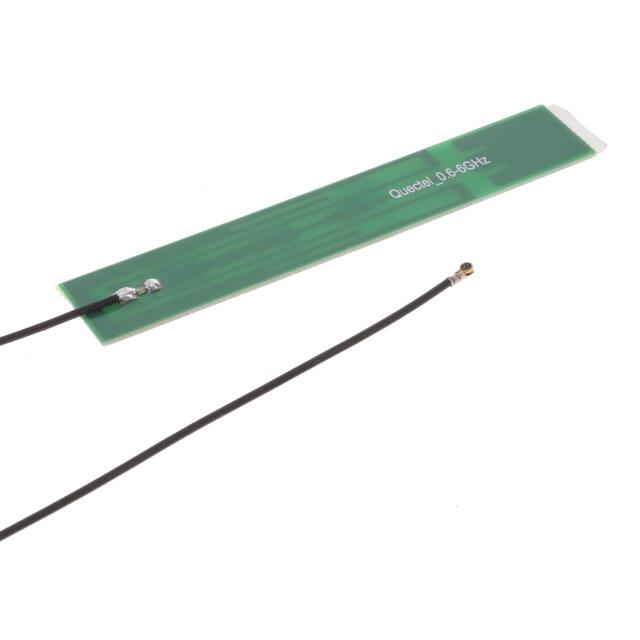

This is manufactured by Quectel. The manufacturer part number is YP0009CA. The frequency range includes 698mhz ~ 960mhz, 1.176ghz ~ 1.28ghz, 1.4ghz ~ 1.61ghz, 1.71ghz ~ 2.17ghz, 2.17ghz ~ 2.69ghz, 3.3ghz ~ 4ghz, 4ghz ~ 5ghz, 5ghz ~ 6ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product boasts a wide band frequency group. Additionally, the 0.037" (0.95mm) is the maximum height of the product. The product is widely employed in 6g. The 0.51dbi, 2.4dbi, 4.5dbi, 3.8dbi, 3.9dbi, 2.3dbi is the gain value of a bespoke product. It contains 8 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 829mhz, 1.228ghz, 1.505ghz, 1.94ghz, 3.65ghz, 4.5ghz, 5.5ghz at center/band. The product features ipex mhf4 termination style. The splendid features of the product include cable - 188.5mm. The product is available in adhesive configuration. It is a pcb trace antenna. VSWR Information: 1.96, 2.1, 2.19, 2.2, 2.31, 4.5. The product is designated with the ear99 code number.
