Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 790MHz, 790MHz ~ 960MHz, 1.695GHz ~ 2.18GHz, 2.18GHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
3.425" (87.00mm)
REACH Status:
REACH Unaffected
edacadModel:
1399.31.0007 Models
Applications:
AMPS, GSM, PCS, CDMA, UMTS, WiFi, WLAN, LTE
Gain:
2.5dBi, 3.5dBi, 4.5dBi, 5dBi, 6dBi, 6.5dBi, 6.5dBi, 5.5dBi
edacadModelUrl:
/en/models/15202991
Number of Bands:
8
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, WiFi
Frequency (Center/Band):
657.5MHz, 744MHz, 875MHz, 1.9375GHz, 2.29GHz, 2.45GHz, 2.595GHz, 3.75GHz
Termination:
4.3/10 - Female (2)
standardLeadTime:
15 Weeks
Ingress Protection:
-
Features:
Cable - 350mm
Mounting Type:
-
Antenna Type:
Module
Series:
SENCITY®
Power - Max:
50 W
VSWR:
1.5, 1.6, 1.8, 1.9, 2
Return Loss:
-
ECCN:
EAR99

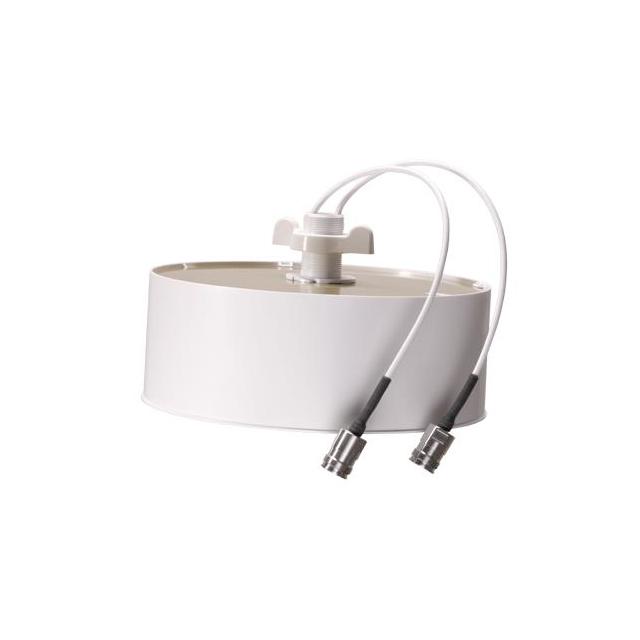

This is manufactured by Huber+Suhner, Inc.. The manufacturer part number is 1399.31.0007. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 790mhz, 790mhz ~ 960mhz, 1.695ghz ~ 2.18ghz, 2.18ghz ~ 2.4ghz, 2.4ghz ~ 2.5ghz, 2.5ghz ~ 2.69ghz, 3.3ghz ~ 4.2ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 3.425" (87.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in amps, gsm, pcs, cdma, umts, wifi, wlan, lte. The 2.5dbi, 3.5dbi, 4.5dbi, 5dbi, 6dbi, 6.5dbi, 6.5dbi, 5.5dbi is the gain value of a bespoke product. It contains 8 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, wifi. While it has a frequency of 657.5mhz, 744mhz, 875mhz, 1.9375ghz, 2.29ghz, 2.45ghz, 2.595ghz, 3.75ghz at center/band. The product features 4.3/10 - female (2) termination style. It has a long 15 weeks standard lead time. The splendid features of the product include cable - 350mm. It is a module antenna. The product sencity®, is a highly preferred choice for users. The maximum power of the product is 50 w. VSWR Information: 1.5, 1.6, 1.8, 1.9, 2. The product is designated with the ear99 code number.
