Frequency Range:
1.56GHz ~ 10.6GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Ultra Wide Band
Height (Max):
0.079" (2.00mm)
edacadModel:
NN03-320 Models
Applications:
5G, Beidou, BT, Galileo, GNSS, GPS, UWB
Gain:
2.6dBi
edacadModelUrl:
/en/models/10440477
Number of Bands:
3
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
Bluetooth, Cellular, Navigation, WiFi
Frequency (Center/Band):
1.561GHz, 1.575GHz, 1.606GHz, 2.45GHz, 3.5GHz, 3.7GHz, 3.4Ghz, 4.0GHz, 4.5GHz, 5.0GHz , 5.5GHz, 6.1GHz, 6.6GHz, 7.1GHz, 7.7GHz, 8.2GHz, 8.7GHz, 9.2GHz, 9.8GHz, 10.3GHz
Termination:
Solder
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Chip
Series:
DUO mXTEND™
VSWR:
2.5
Return Loss:
-
Base Product Number:
NN03
ECCN:
7A994

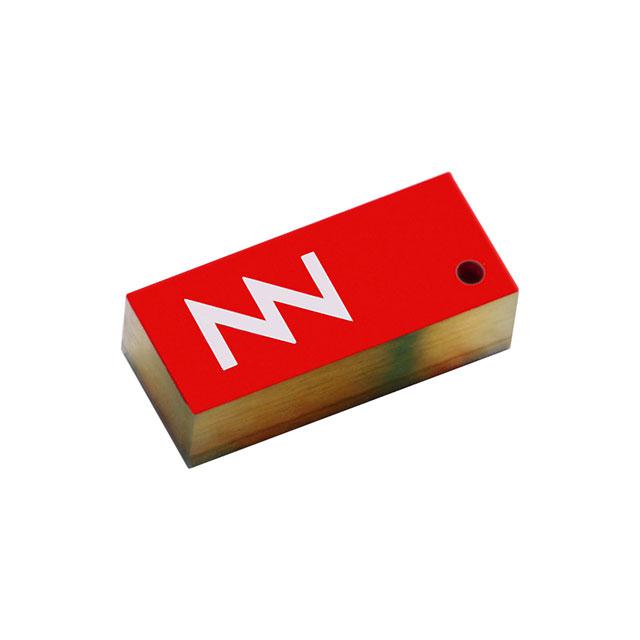

This is manufactured by Ignion. The manufacturer part number is NN03-320. The frequency range includes 1.56ghz ~ 10.6ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a ultra wide band frequency group. Additionally, the 0.079" (2.00mm) is the maximum height of the product. The product is widely employed in 5g, beidou, bt, galileo, gnss, gps, uwb. The 2.6dbi is the gain value of a bespoke product. It contains 3 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes bluetooth, cellular, navigation, wifi. While it has a frequency of 1.561ghz, 1.575ghz, 1.606ghz, 2.45ghz, 3.5ghz, 3.7ghz, 3.4ghz, 4.0ghz, 4.5ghz, 5.0ghz , 5.5ghz, 6.1ghz, 6.6ghz, 7.1ghz, 7.7ghz, 8.2ghz, 8.7ghz, 9.2ghz, 9.8ghz, 10.3ghz at center/band. The product features solder termination style. It has a long 12 weeks standard lead time. The product is available in surface mount configuration. It is a chip antenna. The product duo mxtend™, is a highly preferred choice for users. VSWR Information: 2.5. Moreover, it corresponds to nn03, a base product number of the product. The product is designated with the 7a994 code number.
