Frequency Range:
698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
1.492" (37.90mm)
REACH Status:
REACH Unaffected
Applications:
5G, DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi
Gain:
1.06dBi, 2.8dBi, 1.21dBi, 1.21dBi, 1.44dBi, 8.21dBi, 8.72dBi, 8.72dBi, 8.14dBi, 7.27dBi
Number of Bands:
14
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz
Termination:
SMA Male
standardLeadTime:
12 Weeks
Ingress Protection:
IPX7
Features:
Cable - 300mm
Mounting Type:
Screw Mount
Antenna Type:
Module
Series:
-
VSWR:
2, 4.5, 3, 3.5, 2.5
Return Loss:
-4dB, -6dB, -5.5dB, -10dB, -8dB
Base Product Number:
H1S600000006
ECCN:
EAR99

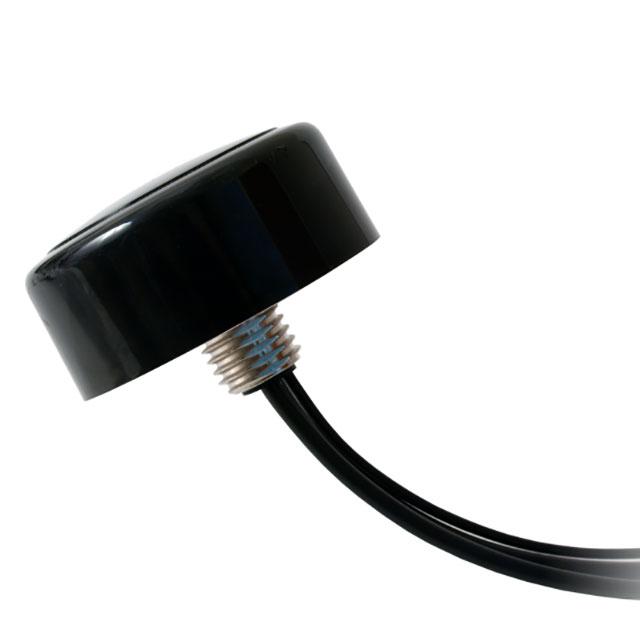

This is manufactured by Unictron Technologies Corporation. The manufacturer part number is H1S600000006AU. The frequency range includes 698mhz ~ 824mhz, 824mhz ~ 960mhz, 1.559ghz ~ 1.563ghz, 1.574ghz ~ 1.576ghz, 1.597ghz ~ 1.607ghz, 1.71ghz ~ 1.88ghz, 1.85ghz ~ 1.99ghz, 1.92ghz ~ 2.17ghz, 2.3ghz ~ 2.69ghz, 3.3ghz ~ 3.8ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 1.492" (37.90mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 5g, dcs, beidou, galileo, glonass, gnss, gps, gsm, lte, pcs, umts, wi-fi. The 1.06dbi, 2.8dbi, 1.21dbi, 1.21dbi, 1.44dbi, 8.21dbi, 8.72dbi, 8.72dbi, 8.14dbi, 7.27dbi is the gain value of a bespoke product. It contains 14 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 761mhz, 892mhz, 1.561ghz, 1.575ghz, 1.602ghz, 1.795ghz, 1.92ghz, 2.045ghz, 2.4ghz, 2.495ghz, 3.55ghz, 5.8ghz at center/band. The product features sma male termination style. It has a long 12 weeks standard lead time. It is IP rated with ipx7. The splendid features of the product include cable - 300mm. The product is available in screw mount configuration. It is a module antenna. VSWR Information: 2, 4.5, 3, 3.5, 2.5. It has a return loss of -4db, -6db, -5.5db, -10db, -8db. Moreover, it corresponds to h1s600000006, a base product number of the product. The product is designated with the ear99 code number.
