Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz
HTSUS:
8517.71.0000
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
5.340" (135.70mm)
REACH Status:
REACH Unaffected
Applications:
4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS
Gain:
0.8dBi, 0.5dBi, 0.7dBi, 4dBi, 4dBi, 4dBi, 2.5dBi, 2.2dBi, 3.5dBi
Number of Bands:
9
Package:
Bag
RF Family/Standard:
Cellular, General ISM, Navigation
Frequency (Center/Band):
600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8 GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz
Termination:
SMA Male
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Blade, Tilt
Series:
5GW
Power - Max:
5 W
VSWR:
3.1, 1.8, 2.8, 1.8, 1.9, 3.9, 1.8, 3.2, 1.8
Return Loss:
-5.8dB, -10.9dB, -6.5dB, 10.9dB, -10.2dB, -4.6dB, 10.9dB, -5.6dB, -10.9dB
Base Product Number:
ANT-5
ECCN:
EAR99

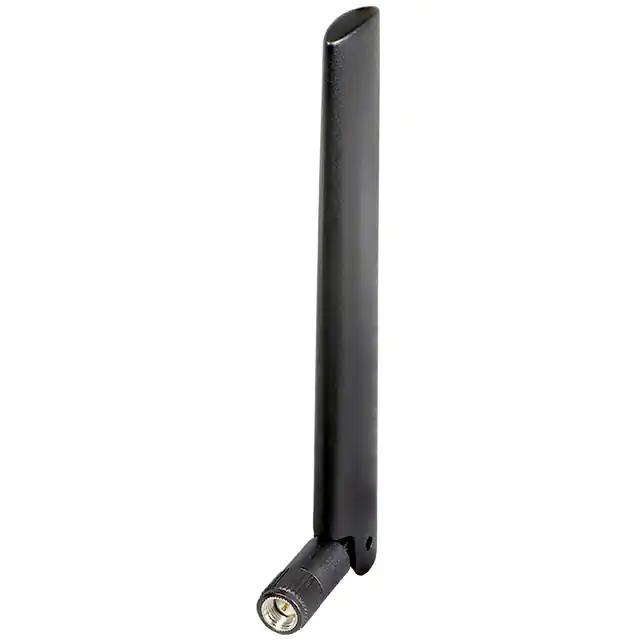

This is manufactured by Linx Technologies Inc.. The manufacturer part number is ANT-5GWWS1-SMA. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 803mhz, 791mhz ~ 960mhz, 1.71ghz ~ 2.2ghz, 2.3ghz ~ 2.4ghz, 2.5ghz ~ 2.7ghz, 3.3ghz ~ 3.8ghz, 3.7ghz ~ 4.2ghz, 4.94ghz ~ 4.99ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 5.340" (135.70mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 4g, 5g, cat-m1, cellular, gsm, lpwa, lte, lte-m, nb-iot, umts. The 0.8dbi, 0.5dbi, 0.7dbi, 4dbi, 4dbi, 4dbi, 2.5dbi, 2.2dbi, 3.5dbi is the gain value of a bespoke product. It contains 9 bands. It is shipped in bag package . The standard RF Family of the product includes cellular, general ism, navigation. While it has a frequency of 600mhz, 700mhz, 800mhz, 850mhz, 900mhz, 1.7ghz, 1.8 ghz, 1.9ghz, 2.1ghz, 2.3ghz, 2.5ghz, 3.3ghz, 3.5ghz, 3.7ghz, 4.9ghz at center/band. The product features sma male termination style. It has a long 12 weeks standard lead time. The product is available in connector mount configuration. It is a blade, tilt antenna. The product 5gw, is a highly preferred choice for users. The maximum power of the product is 5 w. VSWR Information: 3.1, 1.8, 2.8, 1.8, 1.9, 3.9, 1.8, 3.2, 1.8. It has a return loss of -5.8db, -10.9db, -6.5db, 10.9db, -10.2db, -4.6db, 10.9db, -5.6db, -10.9db. Moreover, it corresponds to ant-5, a base product number of the product. The product is designated with the ear99 code number.
