Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.563GHz ~ 1.587GHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
6.772" (172.00mm)
REACH Status:
REACH Unaffected
Applications:
DCS, GPS, GSM, LTE, UMTS
Gain:
-0.68dBi, 0.14dBi, -2.14dBi, -1.88dBi, 0.15dBi, 0.58dBi, -0.74dBi, 0.87dBi, -0.59dBi, 1.98dBi, 1.37dBi
Number of Bands:
10
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation
Frequency (Center/Band):
657.5MHz, 761MHz, 892MHz, 1.4725GHz, 1.795GHz, 2.045GHz, 2.495GHz, 3.4GHz, 5.5375GHz
Termination:
SMA Male
standardLeadTime:
11 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Blade, Tilt
Series:
-
Power - Max:
2 W
VSWR:
-
Return Loss:
-
Base Product Number:
TG.55
ECCN:
7A994

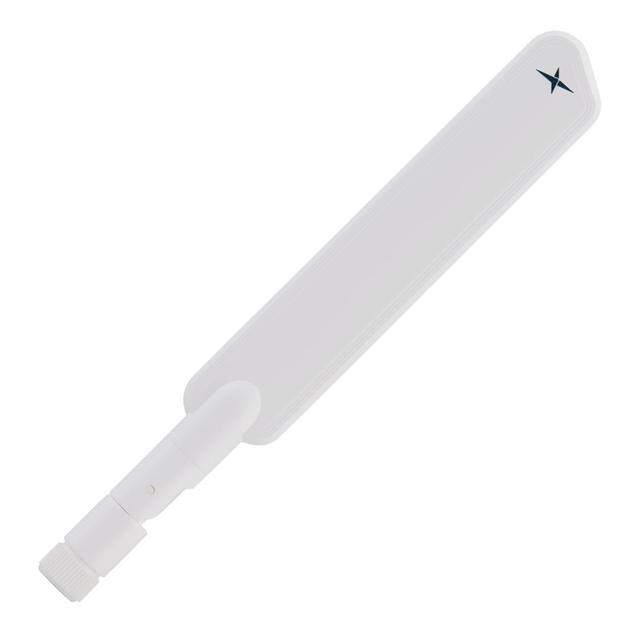

This is manufactured by Taoglas Limited. The manufacturer part number is TG.55.8113W. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 824mhz, 824mhz ~ 960mhz, 1.427ghz ~ 1.518ghz, 1.563ghz ~ 1.587ghz, 1.71ghz ~ 1.88ghz, 1.92ghz ~ 2.17ghz, 2.3ghz ~ 2.69ghz, 3.3ghz ~ 3.5ghz, 5.15ghz ~ 5.925ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 6.772" (172.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in dcs, gps, gsm, lte, umts. The -0.68dbi, 0.14dbi, -2.14dbi, -1.88dbi, 0.15dbi, 0.58dbi, -0.74dbi, 0.87dbi, -0.59dbi, 1.98dbi, 1.37dbi is the gain value of a bespoke product. It contains 10 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation. While it has a frequency of 657.5mhz, 761mhz, 892mhz, 1.4725ghz, 1.795ghz, 2.045ghz, 2.495ghz, 3.4ghz, 5.5375ghz at center/band. The product features sma male termination style. It has a long 11 weeks standard lead time. The product is available in connector mount configuration. It is a blade, tilt antenna. The maximum power of the product is 2 w. Moreover, it corresponds to tg.55, a base product number of the product. The product is designated with the 7a994 code number.
