Frequency Range:
535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 2.32GHz ~ 2.345GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.83GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
3.042" (77.27mm)
REACH Status:
REACH Unaffected
Applications:
Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi
Gain:
3dBi, 4dBi, 4.5dBi, 6dBi
Number of Bands:
7
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Navigation, WiFi
Frequency (Center/Band):
1.07MHz, 98MHz, 1.575GHz, 1.602GHz, 2.332GHz, 2.45GHz, 5.415GHz
Termination:
SMB, Fakra
standardLeadTime:
11 Weeks
Ingress Protection:
IP65
Features:
Cable - 300mm
Mounting Type:
Panel Mount
Antenna Type:
Module
Series:
-
VSWR:
-
Return Loss:
-15dB, -5dB, -15dB, -10dB
Base Product Number:
MA1044
ECCN:
7A994

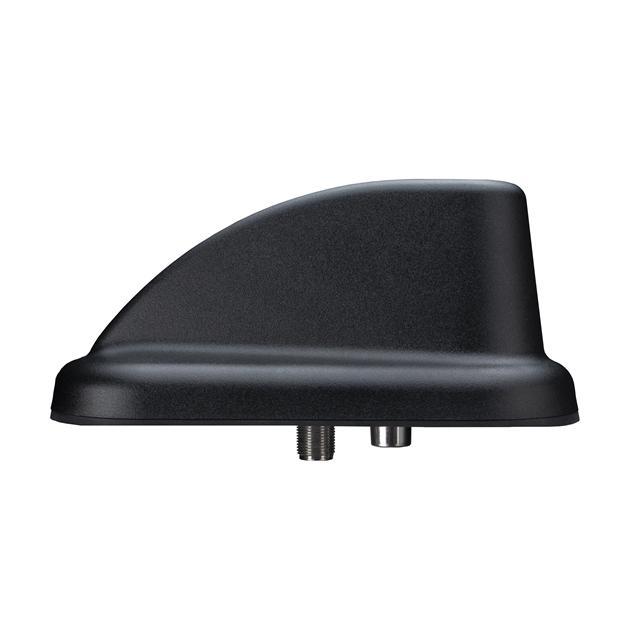

This is manufactured by Taoglas Limited. The manufacturer part number is MA1044.A.ACTX.002. The frequency range includes 535khz ~ 1.605mhz, 88mhz ~ 108mhz, 1.574ghz ~ 1.576ghz, 1.597ghz ~ 1.607ghz, 2.32ghz ~ 2.345ghz, 2.4ghz ~ 2.5ghz, 5ghz ~ 5.83ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 3.042" (77.27mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in beidou, galileo, glonass, gnss, gps, wi-fi. The 3dbi, 4dbi, 4.5dbi, 6dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes navigation, wifi. While it has a frequency of 1.07mhz, 98mhz, 1.575ghz, 1.602ghz, 2.332ghz, 2.45ghz, 5.415ghz at center/band. The product features smb, fakra termination style. It has a long 11 weeks standard lead time. It is IP rated with ip65. The splendid features of the product include cable - 300mm. The product is available in panel mount configuration. It is a module antenna. It has a return loss of -15db, -5db, -15db, -10db. Moreover, it corresponds to ma1044, a base product number of the product. The product is designated with the 7a994 code number.
