Frequency Range:
698MHz ~ 803MHz, 703MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.597GHz ~ 1.576GHz, 1.574GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.305GHz ~ 2.36GHz, 2.49GHz ~ 2.69GHz, 3.4GHz ~ 3.6GHz
HTSUS:
8529.10.4040
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.551" (14.00mm)
REACH Status:
REACH Unaffected
Applications:
Beidou, Galileo, GLONASS, GNSS, GPS
Gain:
0.72dBi, 1.29dBi, 2.13dBi, 1.7dBi, 3.03dBi, 4.22dBi, 3.79dBi, 3.37dBi, 3.05dBi
Number of Bands:
13
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Navigation
Frequency (Center/Band):
750.5MHz, 753MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz
Termination:
SMA Male
Ingress Protection:
IP67
Features:
Cable - 2m, LNA, Filter
Mounting Type:
Surface Mount
Antenna Type:
Module
Series:
-
Power - Max:
5 W
VSWR:
2, 3
Return Loss:
-6dB, -10dB
Base Product Number:
FMA253
ECCN:
EAR99

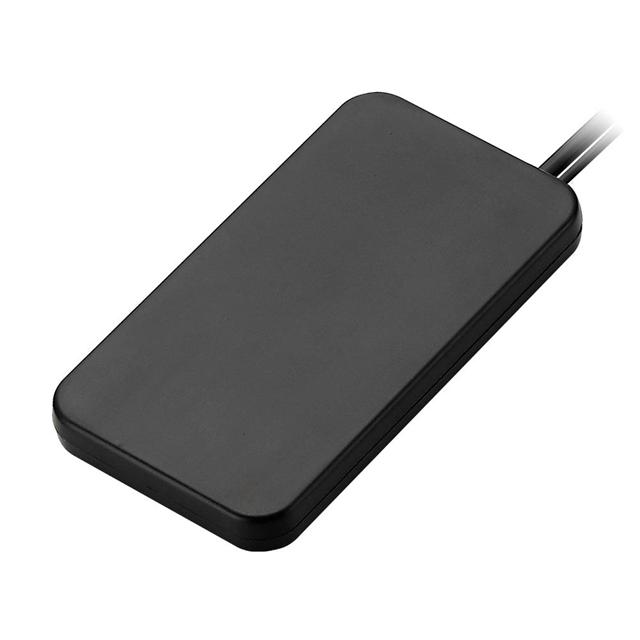

This is manufactured by Taoglas Limited. The manufacturer part number is FMA253.A.LF.001. The frequency range includes 698mhz ~ 803mhz, 703mhz ~ 803mhz, 824mhz ~ 894mhz, 880mhz ~ 960mhz, 1.559ghz ~ 1.563ghz, 1.597ghz ~ 1.576ghz, 1.574ghz ~ 1.607ghz, 1.71ghz ~ 1.88ghz, 1.85ghz ~ 1.99ghz, 1.92ghz ~ 2.17ghz, 2.305ghz ~ 2.36ghz, 2.49ghz ~ 2.69ghz, 3.4ghz ~ 3.6ghz. It is assigned with possible HTSUS value of 8529.10.4040. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.551" (14.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in beidou, galileo, glonass, gnss, gps. The 0.72dbi, 1.29dbi, 2.13dbi, 1.7dbi, 3.03dbi, 4.22dbi, 3.79dbi, 3.37dbi, 3.05dbi is the gain value of a bespoke product. It contains 13 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes navigation. While it has a frequency of 750.5mhz, 753mhz, 859mhz, 920mhz, 1.561ghz, 1.575ghz, 1.602ghz, 1.795ghz, 1.92ghz, 2.045ghz, 2.3325ghz at center/band. The product features sma male termination style. It is IP rated with ip67. The splendid features of the product include cable - 2m, lna, filter. The product is available in surface mount configuration. It is a module antenna. The maximum power of the product is 5 w. VSWR Information: 2, 3. It has a return loss of -6db, -10db. Moreover, it corresponds to fma253, a base product number of the product. The product is designated with the ear99 code number.
