Frequency Range:
696MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.010" (0.20mm)
REACH Status:
REACH Unaffected
Applications:
4G, 5G, LTE
Gain:
5.6dBi, 6.5dBi, 4.9dBi, 5.2dBi, 5dBi, 5.3dBi, 2.9dBi
Number of Bands:
7
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, General ISM
Frequency (Center/Band):
750MHz, 876MHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz
Termination:
IPEX MHF1 (U.FL)
standardLeadTime:
13 Weeks
Ingress Protection:
-
Features:
Cable - 100mm
Mounting Type:
Adhesive
Antenna Type:
Flat Patch
Series:
FPC
Power - Max:
2 W
VSWR:
2.3, 2.4, 4.6, 1.4, 1.8, 3.5
Return Loss:
-8.1dB, -7.7dB, -3.8dB, -15.6dB, -10.9dB, -5.1dB
Base Product Number:
ANT-LPL
ECCN:
EAR99

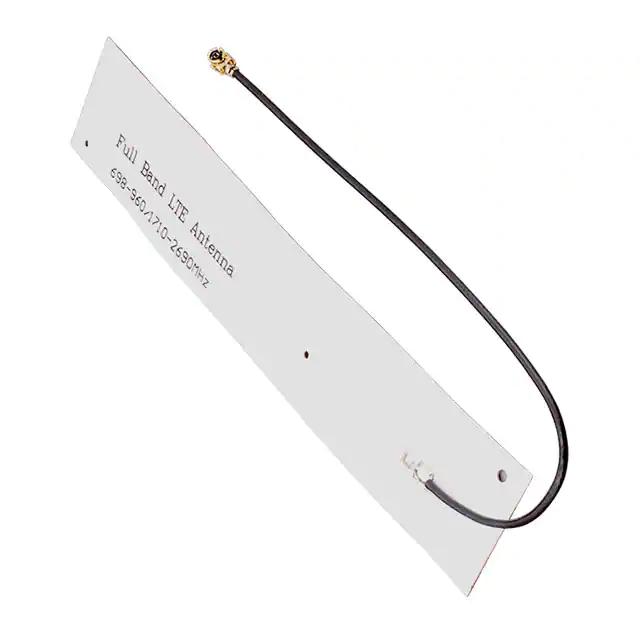

This is manufactured by Linx Technologies Inc.. The manufacturer part number is ANT-LPL-FPC-100. The frequency range includes 696mhz ~ 960mhz, 1.71ghz ~ 2.2ghz, 2.3ghz ~ 2.4ghz, 2.4ghz ~ 2.485ghz, 2.496ghz ~ 2.69ghz, 3.3ghz ~ 3.8ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.010" (0.20mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 4g, 5g, lte. The 5.6dbi, 6.5dbi, 4.9dbi, 5.2dbi, 5dbi, 5.3dbi, 2.9dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, general ism. While it has a frequency of 750mhz, 876mhz, 1.96ghz, 2.35ghz, 2.44ghz, 2.59ghz, 3.55ghz at center/band. The product features ipex mhf1 (u.fl) termination style. It has a long 13 weeks standard lead time. The splendid features of the product include cable - 100mm. The product is available in adhesive configuration. It is a flat patch antenna. The product fpc, is a highly preferred choice for users. The maximum power of the product is 2 w. VSWR Information: 2.3, 2.4, 4.6, 1.4, 1.8, 3.5. It has a return loss of -8.1db, -7.7db, -3.8db, -15.6db, -10.9db, -5.1db. Moreover, it corresponds to ant-lpl, a base product number of the product. The product is designated with the ear99 code number.
