Frequency Range:
824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.004" (0.10mm)
REACH Status:
REACH Unaffected
edacadModel:
1052630001 Models
Applications:
GSM, LTE, UMTS
Gain:
2dBi, 2.2dBi, 2.3dBi, 3.1dBi
edacadModelUrl:
/en/models/3829635
Number of Bands:
6
Package:
Tray
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz
Termination:
U.FL (UMCC), IPEX MHF1
standardLeadTime:
17 Weeks
Ingress Protection:
-
Features:
Cable - 100mm
Mounting Type:
Adhesive
Antenna Type:
Flat Patch
Series:
105263
Power - Max:
2 W
VSWR:
-
Return Loss:
-6.8dB, -7dB, -7.5dB, -10dB, -10.5dB
Base Product Number:
105263
ECCN:
EAR99

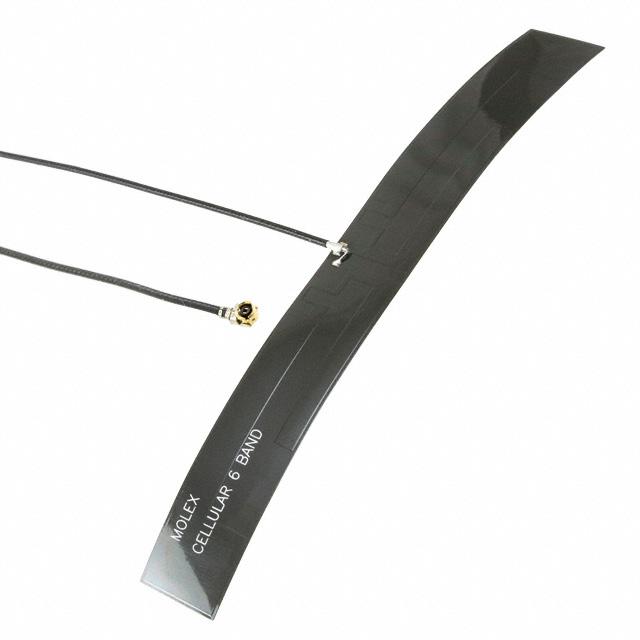

This is manufactured by Molex. The manufacturer part number is 1052630001. The frequency range includes 824mhz ~ 894mhz, 880mhz ~ 960mhz, 1.71ghz ~ 1.88ghz, 1.85ghz ~ 1.99ghz, 1.92ghz ~ 2.17ghz, 2.5ghz ~ 2.69ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.004" (0.10mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in gsm, lte, umts. The 2dbi, 2.2dbi, 2.3dbi, 3.1dbi is the gain value of a bespoke product. It contains 6 bands. It is shipped in tray package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 850mhz, 900mhz, 1.8ghz, 1.9ghz, 2ghz, 2.6ghz at center/band. The product features u.fl (umcc), ipex mhf1 termination style. It has a long 17 weeks standard lead time. The splendid features of the product include cable - 100mm. The product is available in adhesive configuration. It is a flat patch antenna. The product 105263, is a highly preferred choice for users. The maximum power of the product is 2 w. It has a return loss of -6.8db, -7db, -7.5db, -10db, -10.5db. Moreover, it corresponds to 105263, a base product number of the product. The product is designated with the ear99 code number.
