Frequency Range:
2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
HTSUS:
8517.71.0000
RoHS Status:
RoHS Compliant
Frequency Group:
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Height (Max):
0.280" (7.10mm)
Applications:
Bluetooth, Wi-Fi, WLAN, Zigbee™
Gain:
-0.6dBi, 2.5dBi, 4.5dBi, 3.5dBi
Number of Bands:
4
Package:
Tray
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
802.15.4, Bluetooth, WiFi
Frequency (Center/Band):
2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz
Termination:
Solder
standardLeadTime:
9 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Stamped Metal
Series:
Prestta™
VSWR:
3, 2.5, 2.5, 3
Return Loss:
-
ECCN:
EAR99

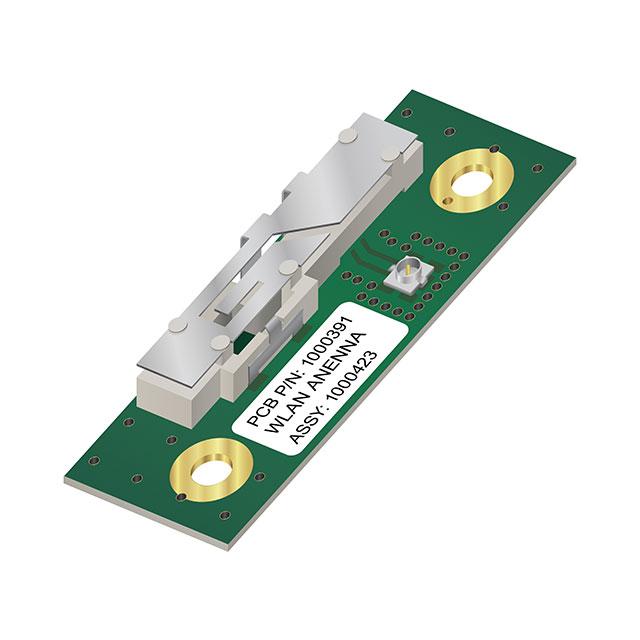

This is manufactured by Ethertronics/AVX. The manufacturer part number is 1000423. The frequency range includes 2.39ghz ~ 2.49ghz, 4.9ghz ~ 5.35ghz, 5.7ghz ~ 5.9ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs compliant. The product boasts a uhf (2ghz ~ 3ghz), shf (f > 4ghz) frequency group. Additionally, the 0.280" (7.10mm) is the maximum height of the product. The product is widely employed in bluetooth, wi-fi, wlan, zigbee™. The -0.6dbi, 2.5dbi, 4.5dbi, 3.5dbi is the gain value of a bespoke product. It contains 4 bands. It is shipped in tray package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes 802.15.4, bluetooth, wifi. While it has a frequency of 2.4ghz, 4.9ghz, 5.2ghz, 5.8ghz at center/band. The product features solder termination style. It has a long 9 weeks standard lead time. The product is available in surface mount configuration. It is a stamped metal antenna. The product prestta™, is a highly preferred choice for users. VSWR Information: 3, 2.5, 2.5, 3. The product is designated with the ear99 code number.
