Manufacturer Standard Lead Time:
16 Weeks
Frequency Group:
Wide Band
Frequency Range:
824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Mounting Type:
Surface Mount
Height (Max):
0.118" (3.00mm)
Antenna Type:
Chip
Customer Reference:
Detailed Description:
850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz GSM Chip RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz -1.9dBi, -1.3dBi, -1.3dBi, -1.66dBi Solder Surface Mount
Packaging:
Cut Tape (CT)
Applications:
GSM
RF Family/Standard:
Cellular
Gain:
-1.9dBi, -1.3dBi, -1.3dBi, -1.66dBi
Number of Bands:
5
Termination:
Solder
Return Loss:
-4.1dB, -4.6dB, -16.3dB, -12.3dB
Frequency (Center/Band):
850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Manufacturer:
PulseLarsen Antennas

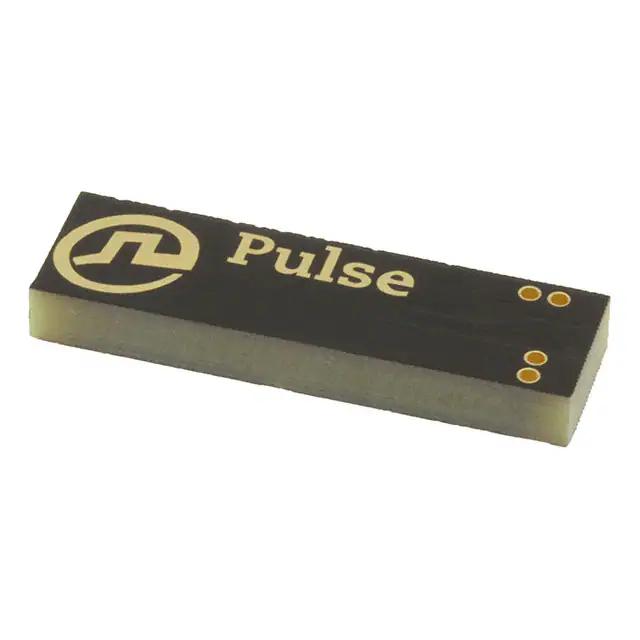

This is manufactured by PulseLarsen Antennas. The manufacturer part number is W3544A. It has typical 16 weeks of manufacturer standard lead time. The product boasts a wide band frequency group. The frequency range includes 824mhz ~ 960mhz, 1.71ghz ~ 2.17ghz. The product is available in surface mount configuration. Additionally, the 0.118" (3.00mm) is the maximum height of the product. It is a chip antenna. It features 850mhz, 900mhz, 1.8ghz, 1.9ghz, 2.1ghz gsm chip rf antenna 824mhz ~ 960mhz, 1.71ghz ~ 2.17ghz -1.9dbi, -1.3dbi, -1.3dbi, -1.66dbi solder surface mount. In addition, cut tape (ct) is the available packaging type of the product. The product is widely employed in gsm. The standard RF Family of the product includes cellular. The -1.9dbi, -1.3dbi, -1.3dbi, -1.66dbi is the gain value of a bespoke product. It contains 5 bands. The product features solder termination style. It has a return loss of -4.1db, -4.6db, -16.3db, -12.3db. While it has a frequency of 850mhz, 900mhz, 1.8ghz, 1.9ghz, 2.1ghz at center/band. The pulselarsen antennas's product offers user-desired applications.
