Manufacturer Standard Lead Time:
15 Weeks
Frequency Group:
Wide Band
Frequency Range:
858MHz ~ 878MHz, 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.483GHz
Mounting Type:
Surface Mount
Height (Max):
0.063" (1.60mm)
Antenna Type:
Chip
Customer Reference:
Detailed Description:
868MHz, 1.575GHz, 2.4GHz Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ Chip RF Antenna 858MHz ~ 878MHz, 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.483GHz -1.4dBi, 2dBi, 2.5dBi Solder Surface Mount
Packaging:
Cut Tape (CT)
Applications:
Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™
RF Family/Standard:
802.15.4, Bluetooth, Navigation, WiFi
Gain:
-1.4dBi, 2dBi, 2.5dBi
Number of Bands:
3
Termination:
Solder
Return Loss:
-10dB, -12dB, -12dB
Frequency (Center/Band):
868MHz, 1.575GHz, 2.4GHz
Manufacturer:
PulseLarsen Antennas

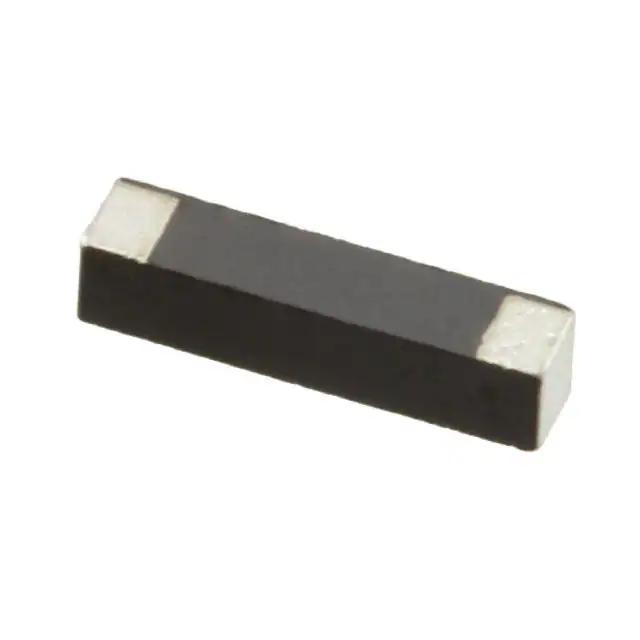

This is manufactured by PulseLarsen Antennas. The manufacturer part number is W3000. It has typical 15 weeks of manufacturer standard lead time. The product boasts a wide band frequency group. The frequency range includes 858mhz ~ 878mhz, 1.565ghz ~ 1.585ghz, 2.4ghz ~ 2.483ghz. The product is available in surface mount configuration. Additionally, the 0.063" (1.60mm) is the maximum height of the product. It is a chip antenna. It features 868mhz, 1.575ghz, 2.4ghz bluetooth, gps, wi-fi, wlan, zigbee™ chip rf antenna 858mhz ~ 878mhz, 1.565ghz ~ 1.585ghz, 2.4ghz ~ 2.483ghz -1.4dbi, 2dbi, 2.5dbi solder surface mount. In addition, cut tape (ct) is the available packaging type of the product. The product is widely employed in bluetooth, gps, wi-fi, wlan, zigbee™. The standard RF Family of the product includes 802.15.4, bluetooth, navigation, wifi. The -1.4dbi, 2dbi, 2.5dbi is the gain value of a bespoke product. It contains 3 bands. The product features solder termination style. It has a return loss of -10db, -12db, -12db. While it has a frequency of 868mhz, 1.575ghz, 2.4ghz at center/band. The pulselarsen antennas's product offers user-desired applications.
