Frequency Range:
703MHz ~ 803MHz, 824MHz ~ 960MHz, 1575.42MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
6.614" (168.00mm)
REACH Status:
REACH Unaffected
Applications:
CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
Gain:
0.34dBi, 0.03dBi, -0.48dBi, -1.85dBi, 0.67dBi, -0.07dBi, 0.23dBi, 2.04dBi
Number of Bands:
8
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation
Frequency (Center/Band):
700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz
Termination:
SMA Male
standardLeadTime:
11 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Whip, Tilt
Series:
Triton
Power - Max:
5 W
VSWR:
-
Return Loss:
-
Base Product Number:
TG.10
ECCN:
7A994

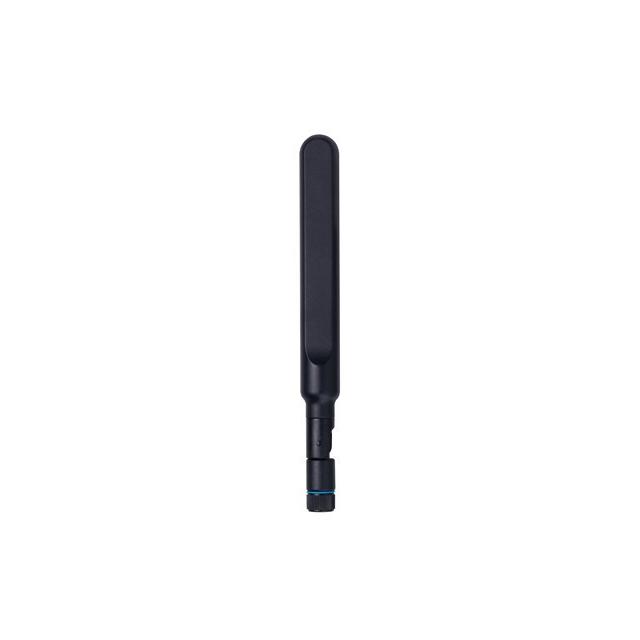

This is manufactured by Taoglas Limited. The manufacturer part number is TG.10.0113. The frequency range includes 703mhz ~ 803mhz, 824mhz ~ 960mhz, 1575.42mhz, 1.71ghz ~ 2.17ghz, 2.49ghz ~ 2.69ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 6.614" (168.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in cdma, dcs, edge, gprs, gps, gsm, hspa, imt, lte, pcs, umts, wcdma. The 0.34dbi, 0.03dbi, -0.48dbi, -1.85dbi, 0.67dbi, -0.07dbi, 0.23dbi, 2.04dbi is the gain value of a bespoke product. It contains 8 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation. While it has a frequency of 700mhz, 850mhz, 900mhz, 1.575ghz, 1.8ghz, 1.9ghz, 2.1ghz, 2.6ghz at center/band. The product features sma male termination style. It has a long 11 weeks standard lead time. The product is available in connector mount configuration. It is a whip, tilt antenna. The product triton, is a highly preferred choice for users. The maximum power of the product is 5 w. Moreover, it corresponds to tg.10, a base product number of the product. The product is designated with the 7a994 code number.
