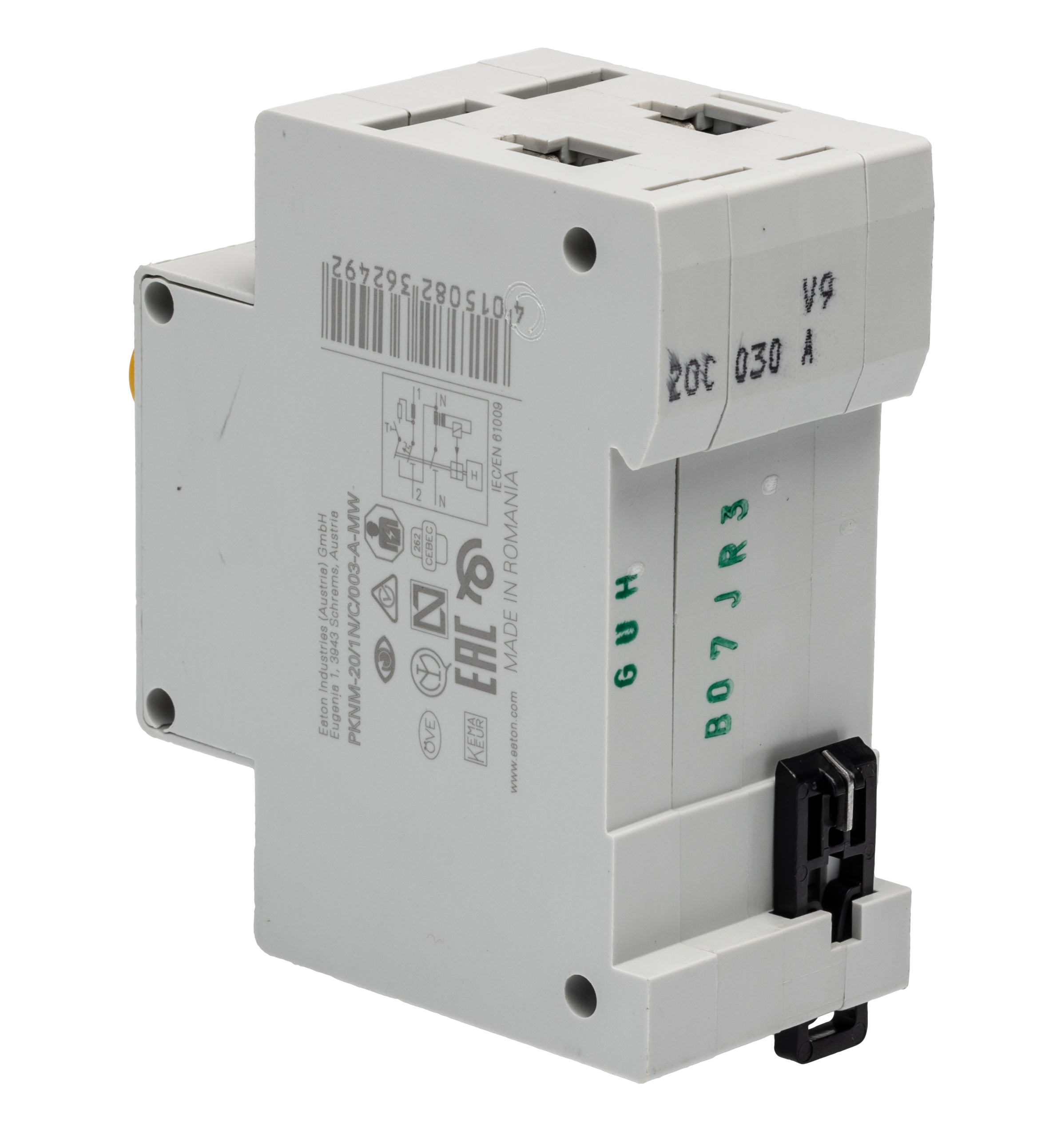

Eaton 2P, 20A Instantaneous RCD, Trip Sensitivity 30mA, Type C, DIN Rail Mount

Enrgtech Part No: ET22736396
|
Manufacturer Part No:
236249 PKNM-20/1N/C/003-A-MW
|
Manufacturer: Eaton

236249-PKNM-20-1N-C-003-A-MW Eaton 2P, 20A Instantaneous RCD, Trip Sensitivity 30mA, Type C, DIN Rail Mount

Product Information

Earth Leakage Protection Type:

Breaking Capacity at Maximum Voltage Rating:

10 kA

Current Rating:

20A

Standards Met:

Voltage Rating:

230V

Trip Sensitivity:

30mA

Overall Width:

65.5mm

Circuit Breaker Type:

RCD

Overall Dimensions:

35 x 65.5 x 80mm

Terminal Contact Type:

Screw

Tripping Characteristics:

Type C

Mounting Style:

DIN Rail Mount

Checking for live stock

Upgrade your UK electrical installations with the Eaton PKNM‑20/1N/C/003‑A‑MW, a compact and reliable 20 A residual‑current circuit breaker with overload protection (RCBO). Designed for DIN‑rail mounting in distribution boards, this combines an RCD and MCB into a single module with Type C tripping characteristic and 30 mA sensitivity. With 10 kA breaking capacity and CE compliance, it delivers fast, dependable protection in industrial, commercial, and residential environments. Its robust screw‑terminal design and instantaneous response ensure both safety and continuity of service across UK power systems.

What Sets the Eaton RCD, Trip Sensitivity 30mA, Type C, DIN Rail Mount Apart?

The PKNM‑20/1N/C/003‑A‑MW stands out for integrating leakage detection and overload protection into one space-saving unit. With Type C tripping suitable for UK installations, a high breaking capacity of 10 kA and pulse‑current sensitivity (Type A), you get advanced protection against both earth leakage and overcurrent events, all meeting BS/IEC standards. Installation is simplified with standard DIN‑rail mount and visible contact‑position indication.

Exceptional Features and Benefits of the Product

Combined RCD & MCB in one module, saves space.
30 mA trip sensitivity (Type A) detects residual pulsating DC currents.
Type C tripping characteristic is ideal for UK circuits and common load types.
10 kA breaking capacity ensures high fault-handling strength.
Compact DIN‑rail form factor with visible toggle status indicator.
CE‑certified and RoHS compliant for safety assurance.

Versatile Uses

Protecting sockets & small consumer circuits in UK homes
Safeguarding commercial distribution boards in shops and offices
Providing reliable protection in industrial control systems
Ideal for circuits with electronic equipment sensitive to leakage currents
Connecting to residual‑current circuits feeding CCTV, lighting or HVAC systems

PKNM Series(Technical Reference)
