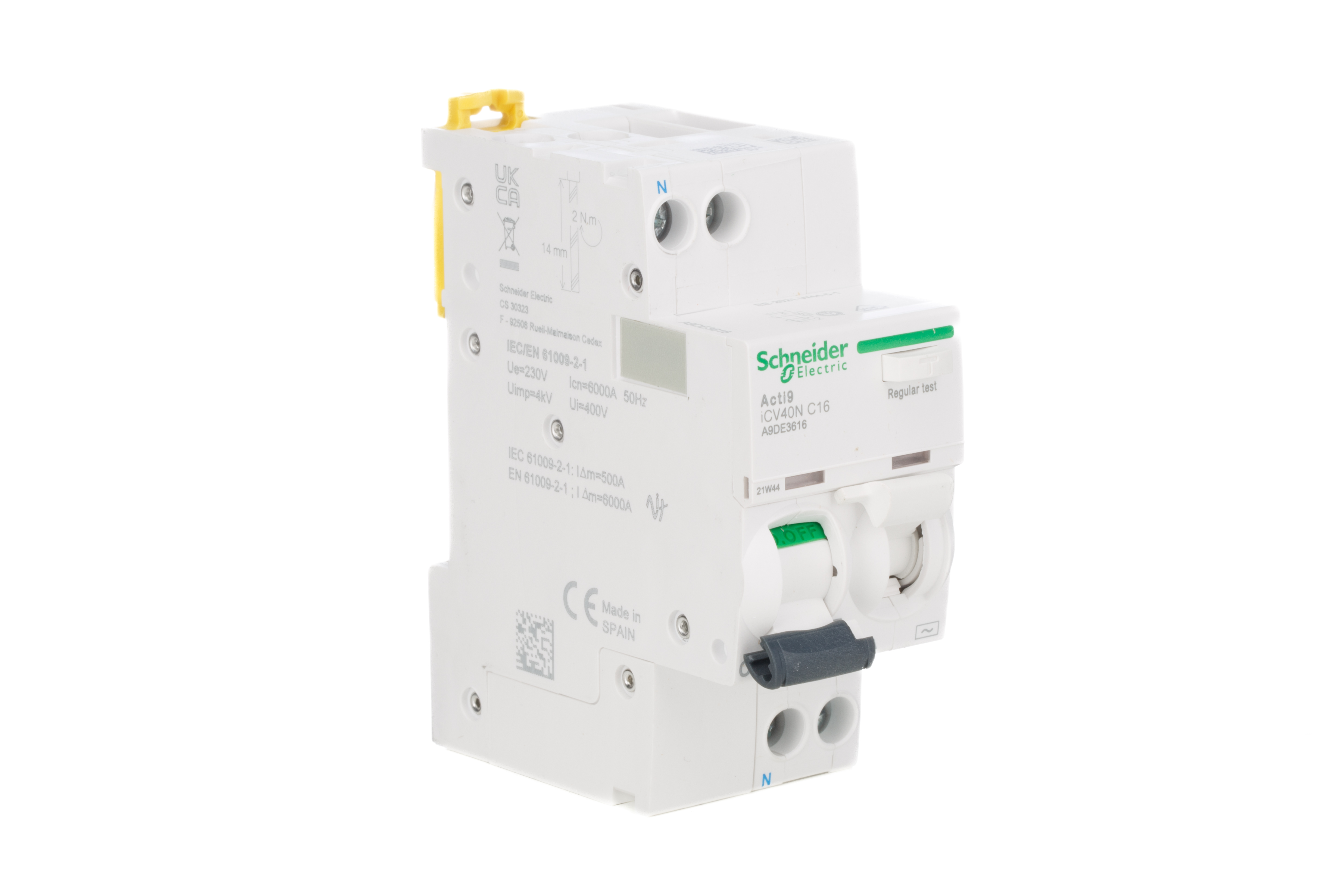

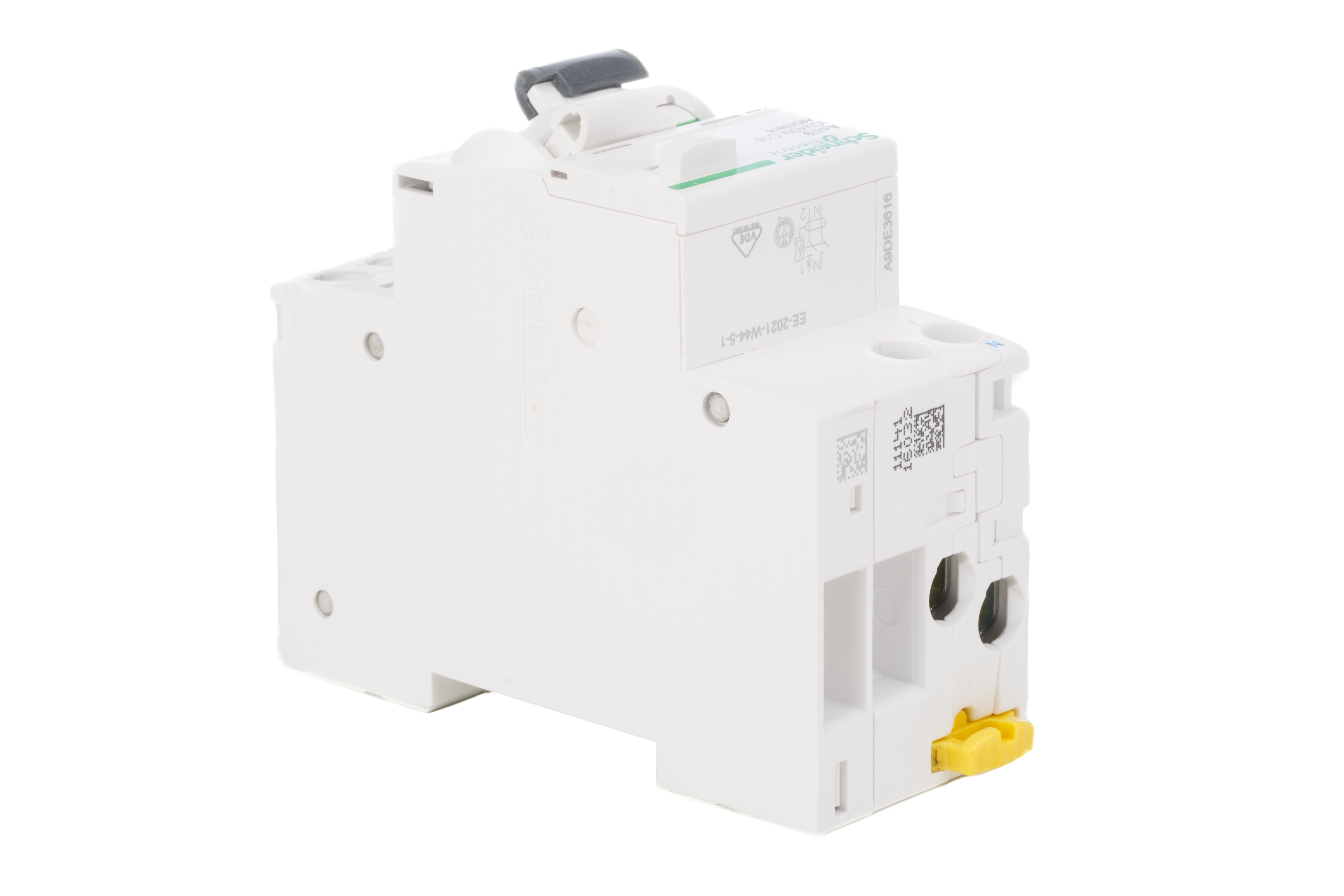

Schneider Electric RCBO 1P+N, 6 kA Breaking Capacity, 30mA Trip Sensitivity, A9 Series

Enrgtech Part No: ET19992686
|
Manufacturer Part No:
A9DE3616
|
Manufacturer: Schneider Electric

A9DE3616 Schneider Electric RCBO 1P+N, 6 kA Breaking Capacity, 30mA Trip Sensitivity, A9 Series

Product Information

Earth Leakage Protection Type:

Type AC

Better World Verification:

Green Premium

Better World Product:

Yes

Current Rating:

16A

Circuit Breaker Type:

RCBO

Trip Sensitivity:

30mA

Series:

Acti9 iCV40

Overall Width:

73mm

Overall Dimensions:

36 x 73 x 85mm

Breaking Capacity at Maximum Voltage Rating:

6 kA

Mounting Style:

DIN Rail Mount

Tripping Mechanism:

Thermal-Magnetic

Checking for live stock

The Schneider Electric A9DE3616 is a 1‑pole + neutral (1P+N) residual current breaker with over‑current protection (RCBO) designed for reliable protection of electrical installations in residential, commercial and light‑industrial environments. As part of the Acti9 iCV40 range, it offers a rated current of 16 A, 30 mA earth‑leakage trip sensitivity, and a breaking capacity of 6000 A at 230 V, making it suitable for DIN‑rail mounting in modern switchboards.

Unique Features and Benefits of the Schneider Electric RCBO 1P, 6 kA Breaking Capacity

Combined RCBO function integrates residual‑current protection (earth fault) with circuit‑breaker overload/short‑circuit protection.
Rated 16 A current and 30 mA leakage trip sensitivity support both protection of persons and equipment.
6 kA (6000 A) breaking capacity meets high‑demand distribution requirements.
1P+N configuration supports compact switchboard layouts with neutral protection.
DIN‑rail mounting, clip‑on design and unified terminal system facilitate installation and wiring.
Fault‑indication window provides quick visual check of earth‑leakage trip status.

Engineered for Robust Electrical System Protection

The A9DE3616 RCBO is engineered to deliver dual‑function protection: handling over‑current events (short‑circuit/overload) and instantly tripping on residual currents exceeding 30 mA, which helps mitigate fire risk and electric shock. Its high breaking capacity and compact form factor make it suitable for modern modular switchboards.

Wide Application Range

Protection of outgoing circuits in residential distribution boards.
Commercial buildings and office blocks requiring combined overload and earth‑leakage protection.
Light‑industrial and infrastructure installations where space is constrained, yet protection levels must meet modern codes.
Renovation and retrofit projects replacing separate RCD + MCB combinations with integrated RCBO solutions.
Safety‑critical circuits (e.g., lighting, socket‑outlets).

Datasheet - A9DE3616(Technical Reference)

Product Environmental Profile(Technical Reference)
