Maximum Temperature:
+70°C
Number of Outputs:
1
Minimum Temperature:
-10°C
Application:
Communication, Industrial, Test
Protection Features:
Over Current Protection, Over Temperature Protection, Over Voltage Protection
Type:
Switch Mode
Holdup Time:
>10ms
Load Regulation:
60mV
Standards Met:
CE, COTS, EN 55022, EN 60950-1, EN 61000-3-2, FCC, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61068-2-27, IEC 61068-2-64, UL 60950-1
Maximum Input Current:
15A
Input Frequency Range:
47 → 63Hz
Input Voltage:
85 → 265V ac
Output Current:
200A
Priced to Clear:
Yes
Output Voltage Adjustment Range:
9.6 → 13.2V
Line Regulation:
30mV
Ripple And Noise:
240mV Pk-Pk
Allowed Circuit Configurations:
Parallel
Special Features:
High Efficiency, Internal ORing FETs & Current Share, 1U High
Power Signal Conversion Type:
AC-DC
Weight:
2.5kg
Mounting Type:
Rack Mount
Series:
RFE2500
Output Voltage:
12 V dc
Power Rating:
2400W

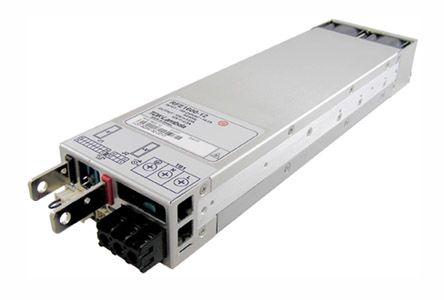

This is Rack Mount Power Supply 85 → 265V ac 12V dc 200A 1 Outputs 2400W 92% 60mV 30mV 240mV Pk-Pk manufactured by TDK-Lambda. The manufacturer part number is RFE-2500-12. The product has +70°c maximum temperature. Additionally, the product is supplied with 1 outputs. While its minimum temperature is -10°c. Applications Information involves communication, industrial, test. It provides robust protection features, such as over current protection, over temperature protection, over voltage protection. It comes in switch mode configuration. Additionally, its holdup time is about >10ms . Load Regulation - 60mv. The product complies with all safety standards, such as ce, cots, en 55022, en 60950-1, en 61000-3-2, fcc, iec 61000-4-11, iec 61000-4-2, iec 61000-4-3, iec 61000-4-4, iec 61000-4-5, iec 61000-4-6, iec 61000-4-8, iec 61068-2-27, iec 61068-2-64, ul 60950-1. While its maximum input current includes 15a. It has 47 → 63hz input frequency range . Its input voltage is 85 → 265v ac. It carries 200a output current. Priced to Clear Options - yes. It has 9.6 → 13.2v of output voltage adjustment range. Has a line regulation of 30mv. Carries 240mv pk-pk ripple and noise. It has a [Adjustable Size] allowed circuit configuration . The product also provides special features, such as high efficiency, internal oring fets & current share, 1u high. In addition, it has ac-dc type power signal conversion . The typical product's weight is 2.5kg. The product is available in rack mount configuration. The product rfe2500, is a highly preferred choice for users. Features a 12 v dc output voltage. Feature 2400w of power rating.
