Maximum Temperature:
+70°C
Minimum Temperature:
-10°C
Application:
Communication, Industrial, Test
Protection Features:
Over Current Protection, Over Temperature Protection, Over Voltage Protection
Maximum Input Current:
15A
Holdup Time:
10ms
Load Regulation:
120mV
Standards Met:
CE, COTS, EN 55022, EN 60950-1, EN 61000-3-2, FCC, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61068-2-27, IEC 61068-2-64, UL 60950-1
Input Frequency Range:
47 → 63Hz
Efficiency:
92%
Input Voltage:
85 → 265V ac
Output Current:
96A
Number of Outputs:
1
Output Voltage Adjustment Range:
19.2 → 29V
Line Regulation:
60mV
Ripple And Noise:
240mV Pk-Pk
Allowed Circuit Configurations:
Parallel
Special Features:
High Efficiency, Internal ORing FETs & Current Share, 1U High
Power Signal Conversion Type:
AC-DC
Weight:
2.5kg
Mounting Type:
Rack Mount
Series:
RFE2500
Output Voltage:
24 V dc
Power Rating:
2304W

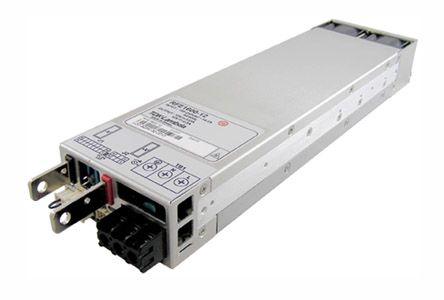

This is Rack Mount Power Supply 85 → 265V ac 24V dc 96A 1 Outputs 2304W 92% 120mV 60mV 240mV Pk-Pk manufactured by TDK-Lambda. The manufacturer part number is RFE-2500-24. The product has +70°c maximum temperature. While its minimum temperature is -10°c. Applications Information involves communication, industrial, test. It provides robust protection features, such as over current protection, over temperature protection, over voltage protection. While its maximum input current includes 15a. Additionally, its holdup time is about 10ms . Load Regulation - 120mv. The product complies with all safety standards, such as ce, cots, en 55022, en 60950-1, en 61000-3-2, fcc, iec 61000-4-11, iec 61000-4-2, iec 61000-4-3, iec 61000-4-4, iec 61000-4-5, iec 61000-4-6, iec 61000-4-8, iec 61068-2-27, iec 61068-2-64, ul 60950-1. It has 47 → 63hz input frequency range . It is a highly efficient product with an 92% of high efficiency. Its input voltage is 85 → 265v ac. It carries 96a output current. Additionally, the product is supplied with 1 outputs. It has 19.2 → 29v of output voltage adjustment range. Has a line regulation of 60mv. Carries 240mv pk-pk ripple and noise. It has a [Adjustable Size] allowed circuit configuration . The product also provides special features, such as high efficiency, internal oring fets & current share, 1u high. In addition, it has ac-dc type power signal conversion . The typical product's weight is 2.5kg. The product is available in rack mount configuration. The product rfe2500, is a highly preferred choice for users. Features a 24 v dc output voltage. Feature 2304w of power rating.
