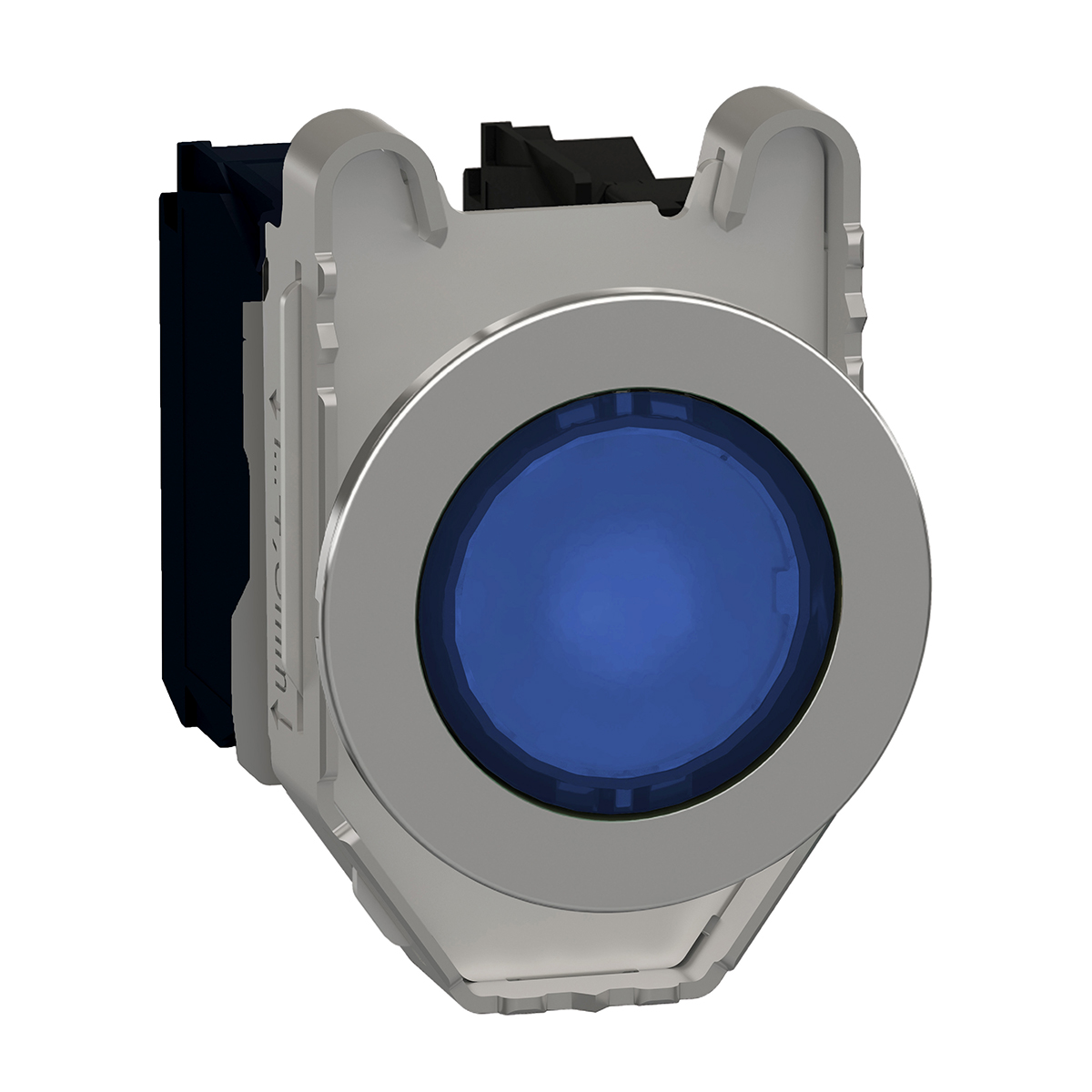

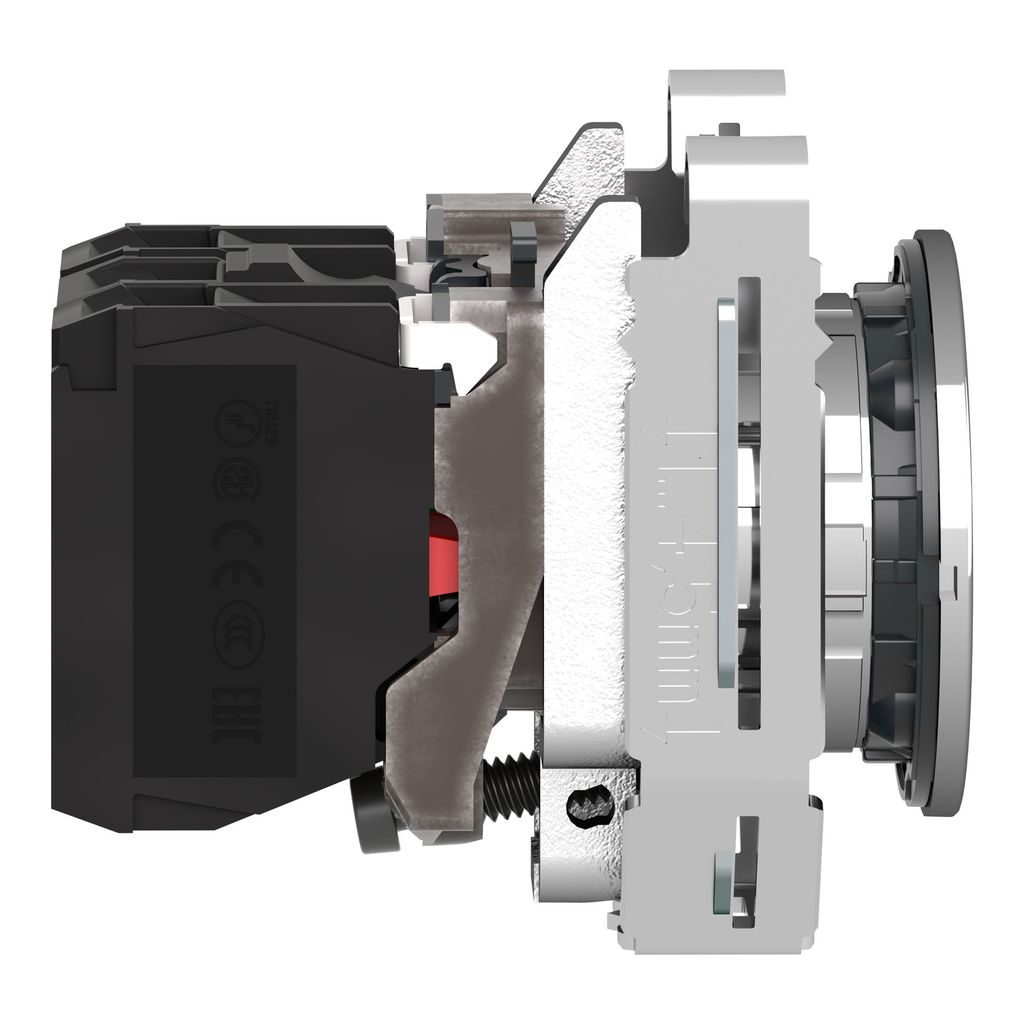

FLUSH MOUNT BLUE ILL PB LED 24V 1NO1NC

XB4FW36B5 FLUSH MOUNT BLUE ILL PB LED 24V 1NO1NC
XB4FW36B5
XB4FW36B5 FLUSH MOUNT BLUE ILL PB LED 24V 1NO1NC
Schneider Electric

Product Information

Actuator Colour:
Blue
Mount Type:
Panel
Legend:
Blank
Width:
36.6 mm
Actuator Style:
Round
Contact DC Voltage:
24V
Illuminated:
Yes
Product Type:
Push Button Switch
Maximum Operating Temperature:
70°C
Terminal Type:
Screw
Minimum Operating Temperature:
-40°C
IP Rating:
IP69K, IP66, IP67, IP69
Contact AC Voltage:
24V
Switch Configuration:
1 NO/1 NC
Contact Configuration:
SPDT
Panel Cutout Size:
30 mm
Length:
55mm
Standards/Approvals:
CSA C22.2 No 14EN/IEC 60947-5-1EN/IEC 60947-5-4UL 508EN/IEC 60947-1JIS C8201-5-1CEJIS C8201-1
LED Colour:
Blue
Switch Operation:
Spring Return
Series:
XB4
Height:
47mm
Switch Contact Current:
10 A
HTSUS:
8536.50.9035
RoHS Status:
ROHS3 Compliant
Electrical Life:
1,000,000 Cycles
Termination Style:
Screw Terminal
Voltage Rating - DC:
125 V
Operating Temperature:
-40°C ~ 70°C
Panel Cutout Dimensions:
Circular - 30.50mm Dia
Mechanical Life:
10,000,000 Cycles
Type:
Standard, Illuminated
Color - Actuator/Cap:
Blue
title:
XB4FW36B5
Voltage Rating - AC:
120 V
REACH Status:
REACH Unaffected
Illumination Type, Color:
LED, Blue
Switch Function:
On-Off, Off-On
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
DPST-NO/NC
standardLeadTime:
5 Weeks
Current Rating (Amps):
6A (AC), 550mA (DC)
Ingress Protection:
IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
-
Mounting Type:
Panel Mount, Front
Series:
Harmony XB4
Packaging:
Box
Actuator Type:
Round, Button, Flush
Illumination Voltage (Nominal):
24 VAC/DC
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is FLUSH MOUNT BLUE ILL PB LED 24V 1NO1NC manufactured by Schneider Electric. The manufacturer part number is XB4FW36B5. The actuator has an adorable blue colour. It has a panel type mount . Legend Information: blank. Furthermore, the product is 36.6 mm wide. Illumination Option yes. push button switch is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 70°c. The terminal is a screw type. Whereas, the minimum operating temperature of the product is -40°c. It is IP rated with ip69k, ip66, ip67, ip69. It is created with a/an 1 no/1 nc switch configuration . The contact is equipped with spdt configuration. Its accurate length is 55mm. The LED has an adorable blue colour. It provides spring return switch operation. The product xb4, is a highly preferred choice for users. In addition, the height is 47mm. It is assigned with possible HTSUS value of 8536.50.9035. The product is rohs3 compliant. The product offers long-lasting services of 1,000,000 cycles. Moreover, it has screw terminal terminal style. 125 v of DC voltage rating. The product has -40°c ~ 70°c operating temperature range. It also has a circular - 30.50mm dia dimensional features. The product also provide mechanical stability with 10,000,000 cycles. It comes in standard, illuminated configuration. It is made from blue. The product exhibits 120 v of AC voltage rating. In addition, it is reach unaffected. It is supplied with led, blue illumination. It is designed as a on-off, off-on switching function. Its typical moisture sensitivity level is not applicable. It has an integral dpst-no/nc circuit. It has a long 5 weeks standard lead time. Additionally, the product's output is 6a (ac), 550ma (dc). It is IP rated with ip66/ip67/ip69/ip69k - dust tight, water resistant, waterproof. The product is available in panel mount, front configuration. The product harmony xb4, is a highly preferred choice for users. In addition, box is the available packaging type of the product. The product carries round, button, flush actuator. The nominal illumination voltage of the product is 24 vac/dc. The product is designated with the ear99 code number.

pdf icon
Datasheet XB4FW36B5(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
New Harmony Leaflet(Technical Reference)
pdf icon
Harmony Led 2023 Changes EN(Technical Reference)
pdf icon
XB4FW36B5(Datasheets)
